A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality cable with low attenuation, minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), and consider using a repeater or signal amplifier if necessary.
The maximum cable length supported by the HFBR-1506AMZ is dependent on the specific application and the type of cable used. However, as a general guideline, the maximum cable length is typically around 40 km for a 9/125 μm single-mode fiber optic cable.
To troubleshoot issues with the HFBR-1506AMZ, check the power supply voltage, ensure proper connection of the transmitter and receiver, verify the fiber optic cable connection, and use an oscilloscope to check the signal transmission and reception.
The HFBR-1506AMZ operates over a temperature range of -40°C to 85°C, and is designed to operate in a relative humidity range of 5% to 95%.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-1506AMZ Overview

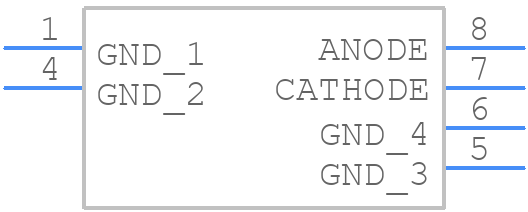

Use the download button to access the HFBR-1506AMZ schematic symbol and PCB footprint.
