HFBR-2402Z - Avago Technologies

Description: Broadcom HFBR-2402Z 5MBd 820Nm Fibre Optic Receiver, Round, SMA ConnectorFiber Optic Receiver General Purpose 5MBd -25.4dBm 4.75V ~ 5.25V 10 mA,–40°C to +85°C

Download HFBR-2402Z Model

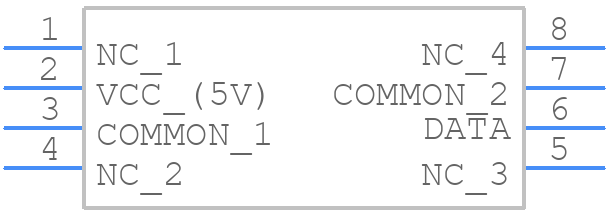

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

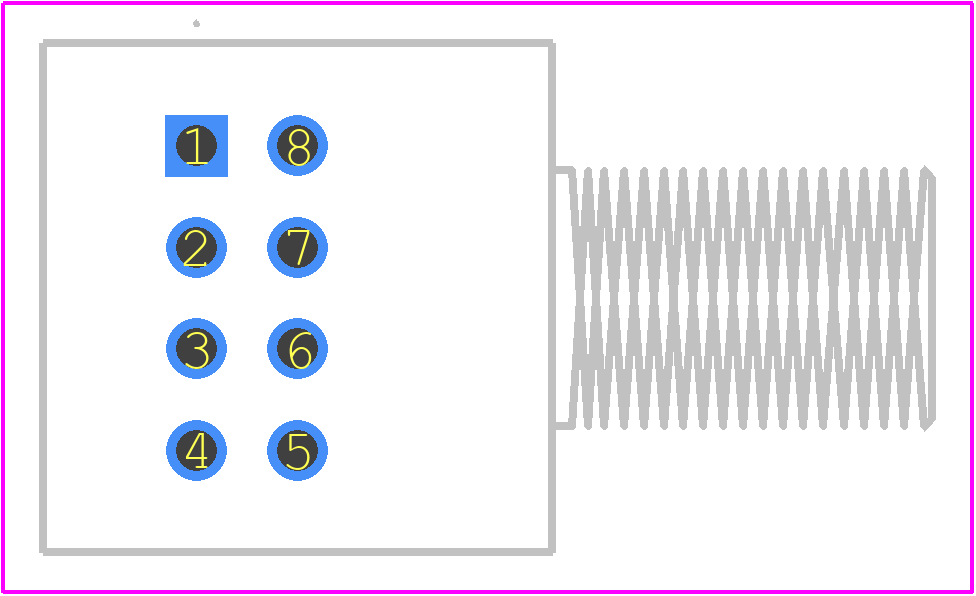

HFBR-2402Z - Avago Technologies PCB footprint - Other - Other - HFBR-2402Z-7
click to zoom
3D Models
HFBR-2402Z - Avago Technologies  - 3D model - Other - HFBR-2402Z-7
click to zoom

HFBR-2402Z Details

  • Manufacturer Part Number:

    HFBR-2402Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    5

  • Additional Feature:

    OTHER FIBER SIZES: 50/125; 62.5/125; 100/140

  • Body Breadth:

    12.7 mm

  • Body Height:

    10.2 mm

  • Body Length or Diameter:

    22.2 mm

  • Built-in Feature:

    AMPLIFIER

  • Connection Type:

    SMA CONNECTOR

  • Data Rate:

    5 Mbps

  • Emitter/Detector Type:

    PIN PHOTODIODE

  • Fiber Optic Device Type:

    RECEIVER

  • Fiber Type:

    200, HCS

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Operating Wavelength-Nom:

    820 nm

  • Reception Type:

    ANALOG

  • Sensitivity:

    -34.4 dBm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

HFBR-2402Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
  • To ensure reliable data transmission over long distances, use a high-quality fiber optic cable, ensure proper termination and connectorization, and implement error correction mechanisms such as checksums or CRCs in the transmission protocol.
  • The maximum cable length supported by the HFBR-2402Z is dependent on the type of fiber optic cable used and the transmission speed. Generally, the maximum cable length is around 10 km for 1 Gb/s transmission and 5 km for 2.5 Gb/s transmission.
  • To troubleshoot issues with the HFBR-2402Z, check the fiber optic cable for damage or contamination, ensure proper termination and connectorization, verify the transmitter and receiver are properly configured, and use an oscilloscope to check the signal quality.
  • The HFBR-2402Z is designed to operate in commercial temperature ranges (0°C to 70°C). For harsh environments, a custom design or specialized components may be required. Consult with Broadcom Limited or a qualified design engineer for guidance.
