OTHER FIBER SIZES: 50/125; 100/140; 200; HCS, DATA RATE(MBD): 5; 20; 32; 55; 125; 155
Body Breadth:
12.7 mm
Body Height:
10.2 mm
Body Length or Diameter:
27.2 mm
Built-in Feature:
AMPLIFIER
Connection Type:
ST CONNECTOR
Emitter/Detector Type:
PIN PHOTODIODE
Fiber Optic Device Type:
RECEIVER
Fiber Type:
62.5/125, MMF
JESD-609 Code:
e3
Mounting Feature:
THROUGH HOLE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Operating Wavelength-Nom:
820 nm
Reception Type:
ANALOG
Sensitivity:
-34.4 dBm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
HFBR-2416MZ Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close to the fiber optic connector to minimize EMI. A good layout practice is to keep the high-speed signals away from the low-speed signals and to use a ground plane to shield the signals.
To ensure reliable operation, it is essential to follow the recommended operating conditions, including the power supply voltage, temperature range, and data transmission rate. Additionally, the module should be properly soldered to the PCB, and the fiber optic connector should be securely attached to the module.
The maximum cable length supported by the HFBR-2416MZ depends on the type of fiber optic cable used. For a 50/125 μm multimode fiber, the maximum cable length is approximately 550 meters at a data transmission rate of 1 Gbps. For a 9/125 μm single-mode fiber, the maximum cable length is approximately 10 km at a data transmission rate of 1 Gbps.
To troubleshoot issues with the HFBR-2416MZ, start by checking the power supply voltage, data transmission rate, and fiber optic connection. Use an oscilloscope to verify the signal integrity and check for any signs of signal degradation. Also, ensure that the module is properly soldered to the PCB and the fiber optic connector is securely attached to the module.
The HFBR-2416MZ is designed to operate in a commercial temperature range of 0°C to 70°C. However, it can be used in harsh environments with proper protection and shielding. For example, it can be used in industrial control systems, medical devices, and aerospace applications with proper thermal management and EMI shielding.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-2416MZ Overview

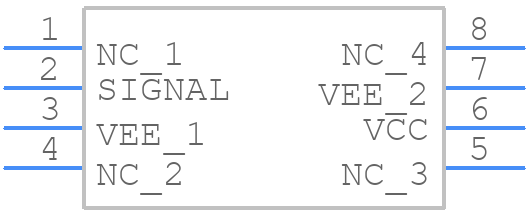

Use the download button to access the HFBR-2416MZ schematic symbol, PCB footprint, and 3D model.
