IT HAS A DATA RATE OF 5 MBD, IT HAS A RESPONSIVITY OF 7 MV/MICRO WATT
Body Breadth:
12.7 mm
Body Length or Diameter:
28.65 mm
Built-in Feature:
AMPLIFIER
Connection Type:
SC CONNECTOR
Emitter/Detector Type:
PIN PHOTODIODE
Fiber Optic Device Type:
RECEIVER
Fiber Type:
62.5/125, MMF
JESD-609 Code:
e3
Mounting Feature:
THROUGH HOLE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Operating Wavelength-Max:
865 nm
Operating Wavelength-Min:
792 nm
Operating Wavelength-Nom:
820 nm
Reception Type:
ANALOG
Sensitivity:
-25.4 dBm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
HFBR-24E2Z Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality cable with low attenuation, minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), and consider using repeaters or amplifiers to boost the signal.
The maximum cable length supported by the HFBR-24E2Z is dependent on the cable type, data rate, and transmission frequency. As a general guideline, the maximum cable length is around 40 km at 1 Gb/s and 10 km at 10 Gb/s.
To troubleshoot issues with the HFBR-24E2Z, check the transmitter and receiver connections, ensure proper power supply, and verify that the cable is not damaged or faulty. Use diagnostic tools such as oscilloscopes or logic analyzers to analyze the signal quality and identify the source of the issue.
The HFBR-24E2Z is designed to operate in commercial temperature ranges (0°C to 70°C). For harsh environments, consider using a ruggedized or industrial-grade version of the transceiver, and ensure that the PCB and components are designed to withstand the environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-24E2Z Overview

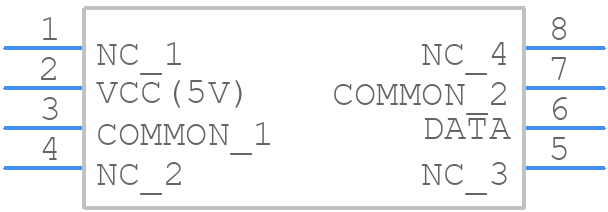

Use the download button to access the HFBR-24E2Z schematic symbol, PCB footprint, and 3D model.
