A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality fiber optic cable, ensure proper termination and connectorization, and implement error correction mechanisms such as checksums or CRCs in the transmission protocol.
The maximum cable length supported by the HFBR-2506AMZ is dependent on the type of fiber optic cable used and the specific application. However, as a general guideline, the HFBR-2506AMZ can support cable lengths of up to 10 km using single-mode fiber optic cables.
To troubleshoot issues with the HFBR-2506AMZ, check the fiber optic cable connections, ensure proper power supply and voltage levels, verify the transmitter and receiver are properly configured, and use an oscilloscope to check the signal waveform and amplitude.
The HFBR-2506AMZ is designed to operate in a temperature range of -40°C to 85°C and humidity levels of up to 60%. However, it is recommended to consult the datasheet and application notes for specific guidance on operating the device in harsh environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-2506AMZ Overview

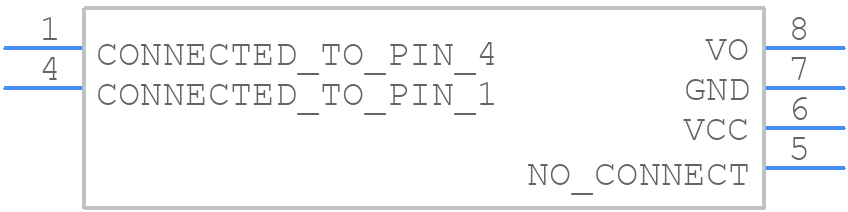

Use the download button to access the HFBR-2506AMZ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HFBR-,
or try a keyword search, such as Fiber Optic Receivers
