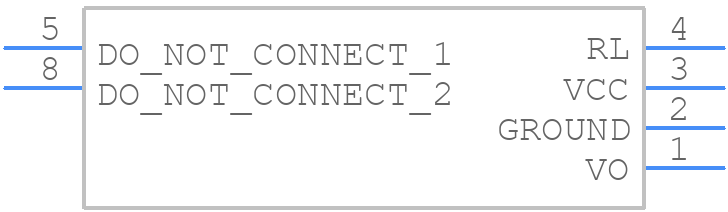

HFBR-2521Z - Avago Technologies

HFBR-2521Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the HFBR-2521Z?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
• How do I ensure reliable data transmission over long distances using the HFBR-2521Z?
  To ensure reliable data transmission over long distances, use a high-quality cable with low attenuation, minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), and consider using repeaters or amplifiers to boost the signal.
• What is the maximum cable length supported by the HFBR-2521Z?
  The maximum cable length supported by the HFBR-2521Z is dependent on the cable type and quality, but generally, it can support cable lengths up to 40 km (24.9 miles) at a data rate of 1 Gb/s.
• How do I troubleshoot issues with the HFBR-2521Z, such as link failures or data corruption?
  To troubleshoot issues with the HFBR-2521Z, check the cable connections, ensure that the transmitter and receiver are properly configured, and use diagnostic tools such as oscilloscopes or logic analyzers to identify signal integrity issues.
• Can the HFBR-2521Z be used in harsh environments, such as high-temperature or high-vibration applications?
  The HFBR-2521Z is designed to operate in industrial temperature ranges (-40°C to 85°C), but it may require additional protection and shielding for use in harsh environments. Consult the datasheet and application notes for specific guidance.
