IT HAS POF SENSITIVITY -23 DBM AND HCS SENSITIVITY -25 DBM
Communication Standard:
RS-232, RS-485
Emitter/Detector Type:
PIN PHOTODIODE
Fiber Optic Device Type:
RECEIVER
Fiber Type:
HCS, POF
JESD-609 Code:
e3
Mounting Feature:
THROUGH HOLE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Operating Wavelength-Nom:
650 nm
Reception Type:
DIGITAL
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Terminal Finish:
TIN
HFBR-2525EZ Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality fiber optic cable, ensure proper termination and connectorization, and implement error correction mechanisms such as checksums or CRCs in the transmission protocol.
The maximum cable length supported by the HFBR-2525EZ is dependent on the type of fiber optic cable used and the specific application. However, as a general guideline, the HFBR-2525EZ can support cable lengths of up to 10 km using single-mode fiber optic cables.
To troubleshoot issues with the HFBR-2525EZ, check the fiber optic cable for damage or contamination, ensure proper connectorization and termination, verify the transmitter and receiver are properly configured, and use an oscilloscope to verify the signal integrity.
The HFBR-2525EZ is designed to operate in a wide range of temperatures (-40°C to 85°C) and can be used in harsh environments with proper packaging and protection. However, it is essential to consult the datasheet and application notes for specific guidance on using the HFBR-2525EZ in harsh environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-2525EZ Overview

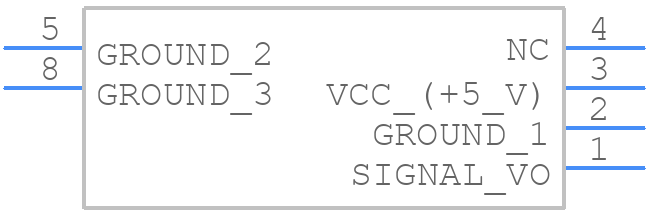

Use the download button to access the HFBR-2525EZ schematic symbol, PCB footprint, and 3D model.
