A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality fiber optic cable, ensure proper termination and connectorization, and implement error correction mechanisms such as checksums or CRCs in the transmission protocol.
The maximum cable length supported by the HFBR-2602Z is dependent on the type of fiber optic cable used and the transmission speed. Generally, the maximum cable length is around 10 km for multimode fiber and 40 km for single-mode fiber at a transmission speed of 1 Gbps.
To troubleshoot issues with the HFBR-2602Z, check the fiber optic cable for damage or contamination, ensure proper connectorization and termination, verify the transmitter and receiver are properly configured, and use an oscilloscope to verify the signal integrity.
The HFBR-2602Z is designed to operate in commercial temperature ranges (0°C to 70°C). For harsh environments, a customized solution may be required, and it is recommended to consult with Broadcom Limited or a qualified design partner for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-2602Z Overview

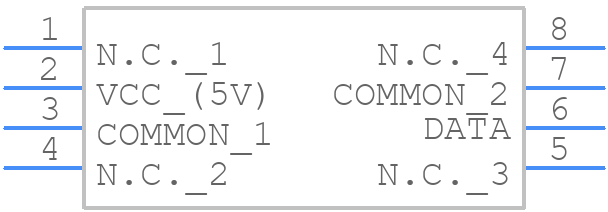

Use the download button to access the HFBR-2602Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFBR-,
or try a keyword search, such as Fiber Optic Receivers
