Broadcom recommends a PCB layout with a solid ground plane, minimal trace lengths, and a 50-ohm transmission line impedance to ensure optimal performance and minimize signal reflections.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and derating the device's operating temperature according to the datasheet specifications.
The maximum cable length supported by the HFBR-5911AL depends on the specific application and the type of fiber optic cable used. As a general guideline, Broadcom recommends limiting the cable length to 10 km or less to ensure reliable operation.
Yes, the HFBR-5911AL is designed to operate in harsh industrial environments and meets the requirements of various industrial standards, including IEC 61076-3-106 and IEC 61747-5-2. However, it is recommended to follow proper installation and maintenance procedures to ensure reliable operation.
To troubleshoot issues with the HFBR-5911AL, it is recommended to follow a systematic approach, including checking the power supply, signal integrity, and fiber optic connections. Broadcom also provides a range of diagnostic tools and technical support resources to help engineers troubleshoot and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-5911AL Overview

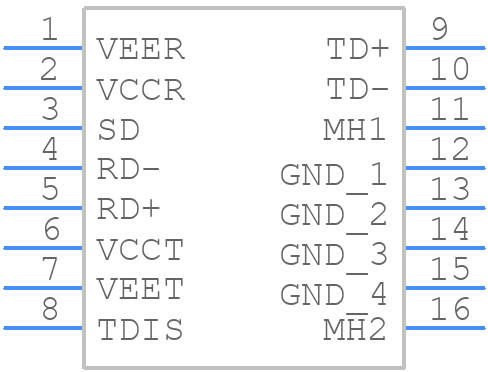

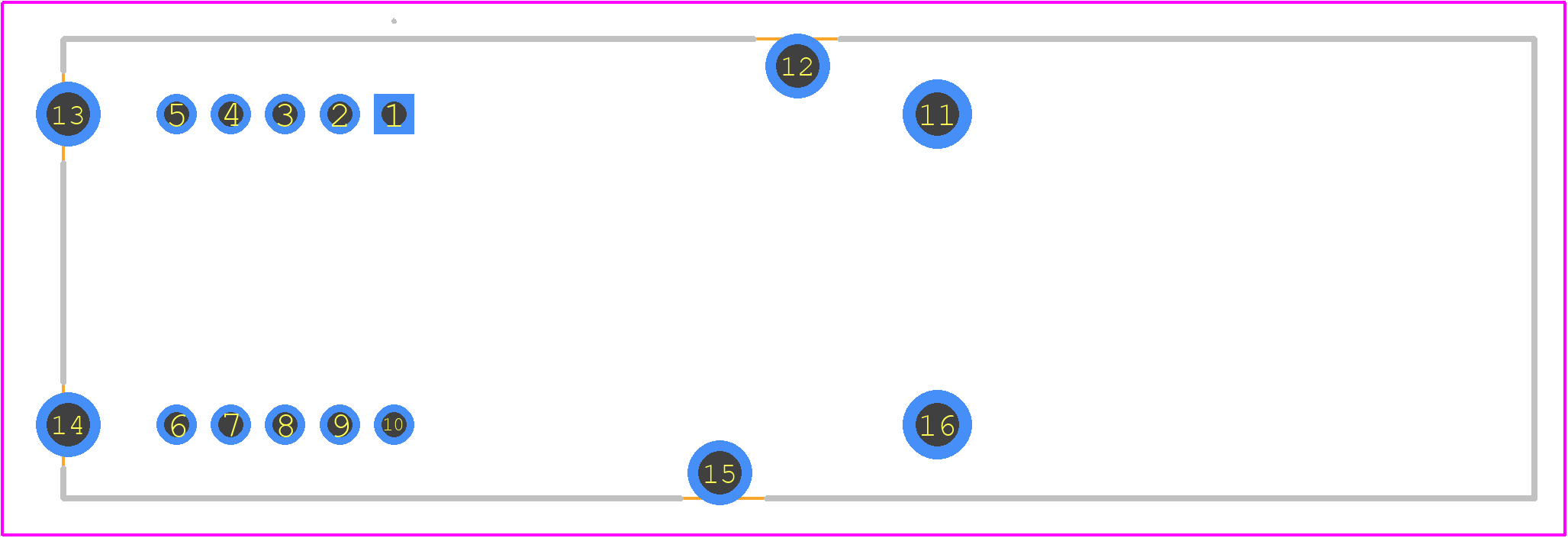

Use the download button to access the HFBR-5911AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFBR-,
or try a keyword search, such as Fiber Optic Transceivers
