HFCN-1200+ - Mini-Circuits

Description: Ceramic High Pass Filter 50Ω 1220 to 4600 MHz

Download HFCN-1200+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

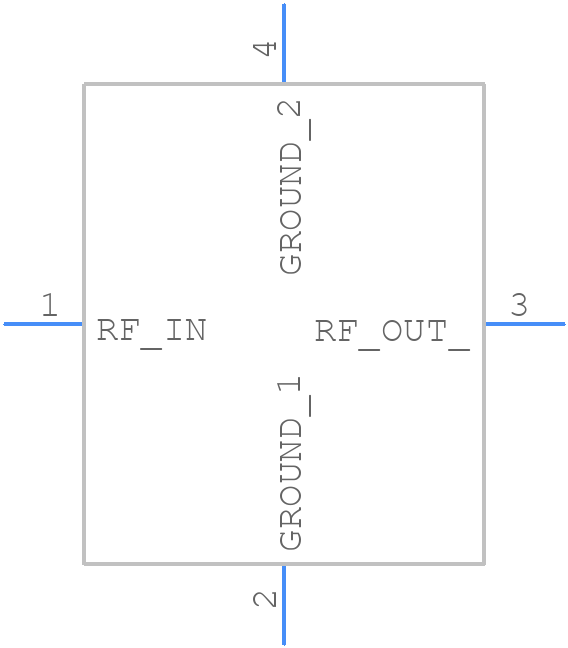

Symbol
HFCN-1200+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
HFCN-1200+ - Mini-Circuits PCB footprint - Other - Other - HFCN-1200+-4
click to zoom
3D Models
HFCN-1200+ - Mini-Circuits - 3D model - Other - HFCN-1200+-4
click to zoom

HFCN-1200+ Details

  • Manufacturer Part Number:

    HFCN-1200+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, CASE FV1206, 4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.09

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency (+/- delta f)-Max:

    430000 kHz

  • Attenuation Frequency (+/- delta f)-Min:

    270000 kHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    7 W

  • Center or Cutoff Frequency (fo/fc):

    1180 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.94 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    7

  • Number of Sections-Min:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.5

  • Width:

    1.6 mm

HFCN-1200+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a specific PCB layout and footprint for optimal performance, which can be found in the application note AN-60-001. It's essential to follow these guidelines to ensure the best possible results.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides a detailed impedance matching guide in their application note AN-60-002. It's recommended to follow this guide to ensure proper impedance matching.
  • The maximum power handling of the HFCN-1200+ is 1 watt. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to avoid damage.
  • The HFCN-1200+ is rated for operation up to 85°C. However, it's recommended to derate the power handling at higher temperatures to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • Mini-Circuits provides a troubleshooting guide in their application note AN-60-003. This guide covers common issues and their solutions, including impedance mismatch, power handling, and thermal issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HFCN-1200+ Overview

Use the download button to access the HFCN-1200+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFCN-, or try a keyword search, such as Ceramic Filters
