HFCN-1200D+ - Mini-Circuits

Description: Signal Conditioning LTCC High Pass Filter, 1220 - 4600 MHz

Download HFCN-1200D+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

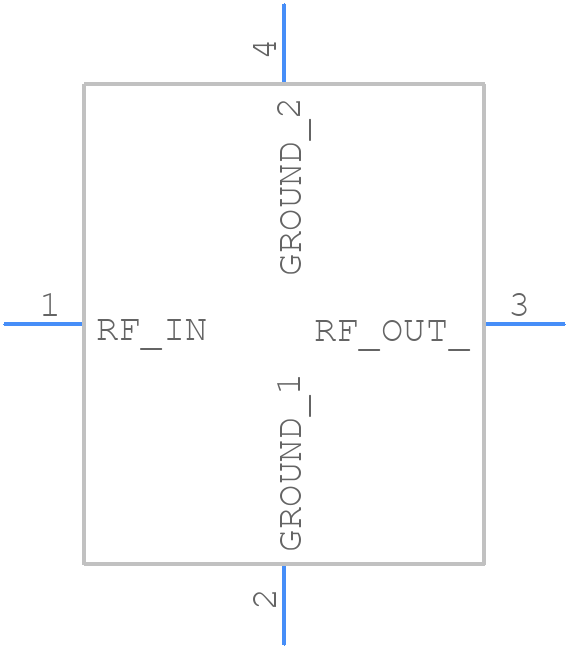

Symbol
HFCN-1200D+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
HFCN-1200D+ - Mini-Circuits PCB footprint - Other - Other - HFCN-1200D+-2
click to zoom
3D Models
HFCN-1200D+ - Mini-Circuits - 3D model - Other - HFCN-1200D+-2
click to zoom

HFCN-1200D+ Details

  • Manufacturer Part Number:

    HFCN-1200D+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, CASE FV1206, 4 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.09

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency (+/- delta f)-Max:

    430000 kHz

  • Attenuation Frequency (+/- delta f)-Min:

    270000 kHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    7 W

  • Center or Cutoff Frequency (fo/fc):

    1180 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.94 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    7

  • Number of Sections-Min:

    7

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Screening Level:

    MIL-STD-202

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR:

    1.5

  • Width:

    1.6 mm
