HFCN-3800+ - Mini-Circuits

Description: Signal Conditioning LTCC High Pass Filter, 4250 - 10000 MHz

Download HFCN-3800+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

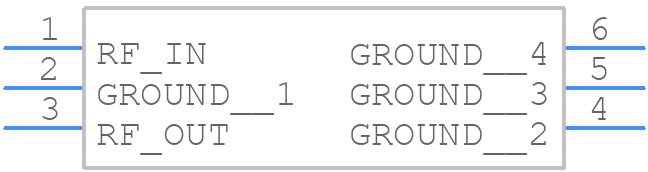

Symbol
HFCN-3800+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
HFCN-3800+ - Mini-Circuits PCB footprint - Other - Other - HFCN-3800+-3
click to zoom
3D Models
HFCN-3800+ - Mini-Circuits - 3D model - Other - HFCN-3800+-3
click to zoom

HFCN-3800+ Details

  • Manufacturer Part Number:

    HFCN-3800+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.69

  • Average Input Power:

    7 W

  • Center or Cutoff Frequency (fo/fc):

    3800 MHz

  • Filter Type:

    CERAMIC HPF

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    3.048 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    5

  • Number of Sections-Min:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • VSWR:

    1.5

  • Width:

    1.524 mm

HFCN-3800+ Frequently Asked Questions (FAQs)

  • A good rule of thumb is to use a solid ground plane on the bottom layer of the PCB, and to keep the signal traces as short and direct as possible. Also, make sure to decouple the power supply lines with capacitors and use a common ground point for all components.
  • To choose the right impedance matching network, you need to consider the input and output impedances of the HFCN-3800+, as well as the impedance of your specific application. You can use a Smith chart or an impedance matching calculator to find the optimal matching network.
  • The maximum power handling capability of the HFCN-3800+ is 1W. Exceeding this power limit can cause damage to the device or affect its performance.
  • To ensure proper biasing, make sure to follow the recommended biasing scheme outlined in the datasheet. This typically involves applying a voltage source to the VCC pin and a current source to the ISET pin. Also, make sure to use a stable voltage source and decouple the power supply lines.
  • The typical noise figure of the HFCN-3800+ is around 3.5 dB. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HFCN-3800+ Overview

Use the download button to access the HFCN-3800+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFCN-, or try a keyword search, such as Ceramic Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
