HFCW-5000+ - Mini-Circuits

Description: 5GHz (Cutoff) High Pass Ceramic Filter 14.5 GHz 50Ohm 0603 (1608 Metric), 6 PC Pad Frequency 5GHz (Cutoff) Impedance 50Ohm Bandwidth 14.5 GHz Insertion Loss 1.4dB

Download HFCW-5000+ Model

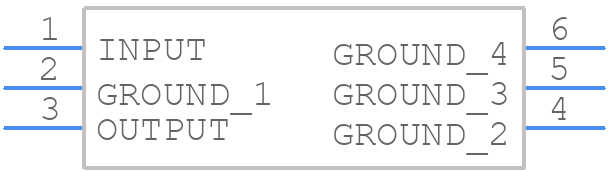

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HFCW-5000+ - Mini-Circuits PCB footprint - Other - Other - JC0603C_2025-1
click to zoom
3D Models
HFCW-5000+ - Mini-Circuits  - 3D model - Other - JC0603C_2025-1
click to zoom

HFCW-5000+ Details

  • Manufacturer Part Number:

    HFCW-5000+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    EIA STD PACKAGE SIZE 0603, 6 PIN

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.74

  • Average Input Power:

    1.75 W

  • Center or Cutoff Frequency (fo/fc):

    5000 MHz

  • Filter Type:

    CERAMIC HPF

  • Height:

    0.6 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.4 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Width:

    0.8 mm

HFCW-5000+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a via-stitched ground plane on the top layer. The device should be placed near the edge of the board to minimize signal reflections. A low-impedance path to ground is essential for the device's internal biasing network.
  • The HFCW-5000+ requires a 5V supply voltage and a bias current of 100mA. Ensure that the power supply is clean and well-regulated, and that the bias current is set correctly using the recommended resistor values. Additionally, the device's internal biasing network requires a low-impedance path to ground.
  • The HFCW-5000+ can handle input powers up to +20dBm (100mW) without damage. However, the device's performance may degrade at higher input powers, and it's recommended to operate at input powers below +15dBm (30mW) for optimal performance.
  • Common issues such as oscillations or instability can be caused by poor PCB layout, inadequate grounding, or incorrect biasing. Check the PCB layout and grounding scheme, ensure that the device is properly biased, and verify that the input and output impedances are matched correctly. Additionally, check for any signs of overheating or damage to the device.
  • The HFCW-5000+ is specified to operate over a temperature range of -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate within a temperature range of 0°C to +70°C for optimal performance.
