HFD2/012-S-L2-D footprint, schematic symbol and 3D model by Hongfa

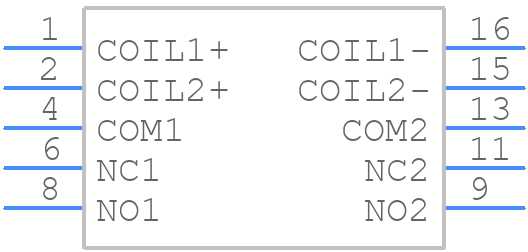

Symbol

click to zoom

PCB Footprints

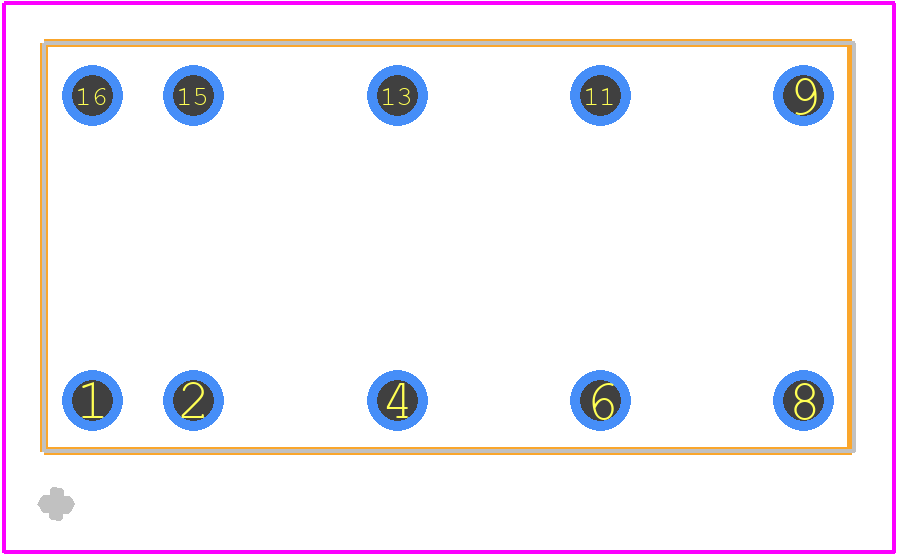

HFD2/012-S-L2-D - Hongfa PCB footprint - Other - Other - HFD2/012-S-L2-D-4_1

click to zoom

3D Models

HFD2/012-S-L2-D - Hongfa - 3D model - Other - HFD2/012-S-L2-D-4_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HFD2/012-S-L2-D
Part Number HFD2/012-S-L2-D
Manufacturer Hongfa
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - HFD2/012-S-L2-D-4_1
Released Date Sep 6, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HFD2/012-S-L2-D Details

Manufacturer Part Number:
HFD2/012-S-L2-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Xiamen Hongfa Electroacoustic Co.,Ltd.
YTEOL:
7.75
Body Breadth:
10.2 mm
Body Height:
10.6 mm
Body Length or Diameter:
20.2 mm
Coil Current(DC)-Max:
0.013 A
Coil Operate Voltage(DC):
9.6 V
Coil Power:
150 mW
Coil Release Voltage(DC):
9.6 V
Coil Resistance:
960 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
3A@250VAC
Contact Current(AC)-Max:
3 A
Contact Current(DC)-Max:
3 A
Contact (DC) Max Rating R Load:
3A@220VDC
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
220 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
50000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
4.5 ms
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
20.2mm x 10.2mm x 10.6mm
Reference Standard:
CUL; UL
Relay Action:
LATCHED
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4.5 ms
Sealing:
EPOXY TERMINAL SEALED
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
Termination Type:
SOLDER

HFD2/012-S-L2-D Frequently Asked Questions (FAQs)

The recommended operating voltage range is 2-12V DC, but it's recommended to operate within 3-9V DC for optimal performance and lifespan.
The buzzer requires a square wave signal with a frequency of 2kHz to operate. A driver circuit or a dedicated IC can be used to generate the required signal. Additionally, a current-limiting resistor may be necessary to prevent overheating.
The maximum current consumption is typically around 30-50mA, but this can vary depending on the operating voltage and frequency. It's recommended to check the datasheet or consult with the manufacturer for specific values.
The buzzer is designed for general-purpose applications and may not be suitable for outdoor or harsh environment use without proper protection. It's recommended to consult with the manufacturer or use a buzzer specifically designed for outdoor or harsh environment applications.
The buzzer is rated for operation up to 40°C (104°F). Operating above this temperature may affect its performance, lifespan, or even cause damage. It's recommended to consult with the manufacturer or use a buzzer specifically designed for high-temperature applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

HFD2/012-S-L2-D Overview

Use the download button to access the HFD2/012-S-L2-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HFD2/, or try a keyword search, such as Power/Signal Relays
