HFD27/012-S - Hongfa

Description: Signal Relay 12VDC 2A DPDT(20.2x10x11.5)mm THT

Download HFD27/012-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

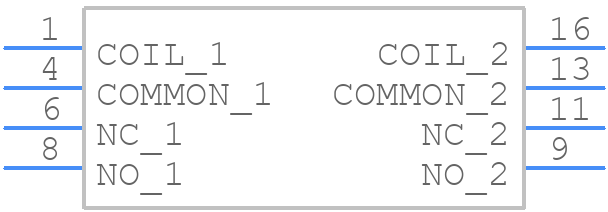

HFD27/012-S - Hongfa - PCB symbol
click to zoom
PCB Footprints
HFD27/012-S - Hongfa PCB footprint - Other - Other - HFD27/012-S-1
click to zoom
3D Models
HFD27/012-S - Hongfa - 3D model - Other - HFD27/012-S-1
click to zoom

HFD27/012-S Details

  • Manufacturer Part Number:

    HFD27/012-S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Xiamen Hongfa Electroacoustic Co.,Ltd.

  • YTEOL:

    7

  • Body Breadth:

    10 mm

  • Body Height:

    11.5 mm

  • Body Length or Diameter:

    20.2 mm

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    720 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    125VA@240VAC

  • Contact (AC) Max Rating R Load:

    2A@240VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Power Rating R Load:

    60W@120VDC

  • Contact (DC) Max Rating R Load:

    2A@120VDC

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(AC)-Max:

    240 V

  • Contact Voltage(DC)-Max:

    120 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    SILVER NICKEL

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    8

  • Operate Time:

    7 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    20.2mm x 10mm x 11.5mm

  • Reference Standard:

    CQC; CUL; TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Length:

    0.003098806197612395 inch

  • Termination Type:

    SOLDER

HFD27/012-S Frequently Asked Questions (FAQs)

  • The recommended PCB layout and component placement for optimal performance can be obtained by contacting Xiamen Hongfa Electroacoustic Co.,Ltd. directly or through their authorized distributors. They can provide guidance on the optimal layout and placement to minimize electromagnetic interference and ensure reliable operation.
  • While the datasheet provides some information on operating temperature and humidity ranges, engineers may want to know more about the device's performance in extreme environments. Xiamen Hongfa Electroacoustic Co.,Ltd. can provide additional information on the device's reliability and performance in high-temperature and high-humidity environments.
  • To ensure reliable assembly and minimize the risk of damage, engineers may want to know the recommended soldering and assembly procedures for the HFD27/012-S. Xiamen Hongfa Electroacoustic Co.,Ltd. can provide guidance on the recommended procedures and techniques.
  • While the datasheet provides some information on electromagnetic compatibility, engineers may want to know more about specific EMI/EMC considerations or shielding requirements for the HFD27/012-S. Xiamen Hongfa Electroacoustic Co.,Ltd. can provide additional guidance on minimizing electromagnetic interference and ensuring reliable operation.
  • Engineers may want to know the typical lead time and minimum order quantity for the HFD27/012-S to plan their production and inventory management. This information can be obtained by contacting Xiamen Hongfa Electroacoustic Co.,Ltd. directly or through their authorized distributors.
