The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting Halo Electronics Inc directly. A good rule of thumb is to follow the IPC-7351 standard for land pattern design and to ensure a solid ground plane under the component.
To ensure reliable soldering, use a soldering iron with a temperature range of 250-270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of cold joints, such as using a hot air reflow oven or a soldering iron with a fine tip.
The maximum operating temperature range for the HFJ11-1G02ERL is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the specific application and environmental conditions to ensure the component operates within its recommended temperature range.
To prevent electrostatic discharge (ESD) damage, handle the component in an ESD-protected environment, use ESD-protective packaging, and ensure that all personnel handling the component wear ESD-protective wrist straps or use ESD-protective mats.
Store the HFJ11-1G02ERL in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the edges, avoiding touching the pins or electrical contacts to prevent damage or contamination.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFJ11-1G02ERL Overview

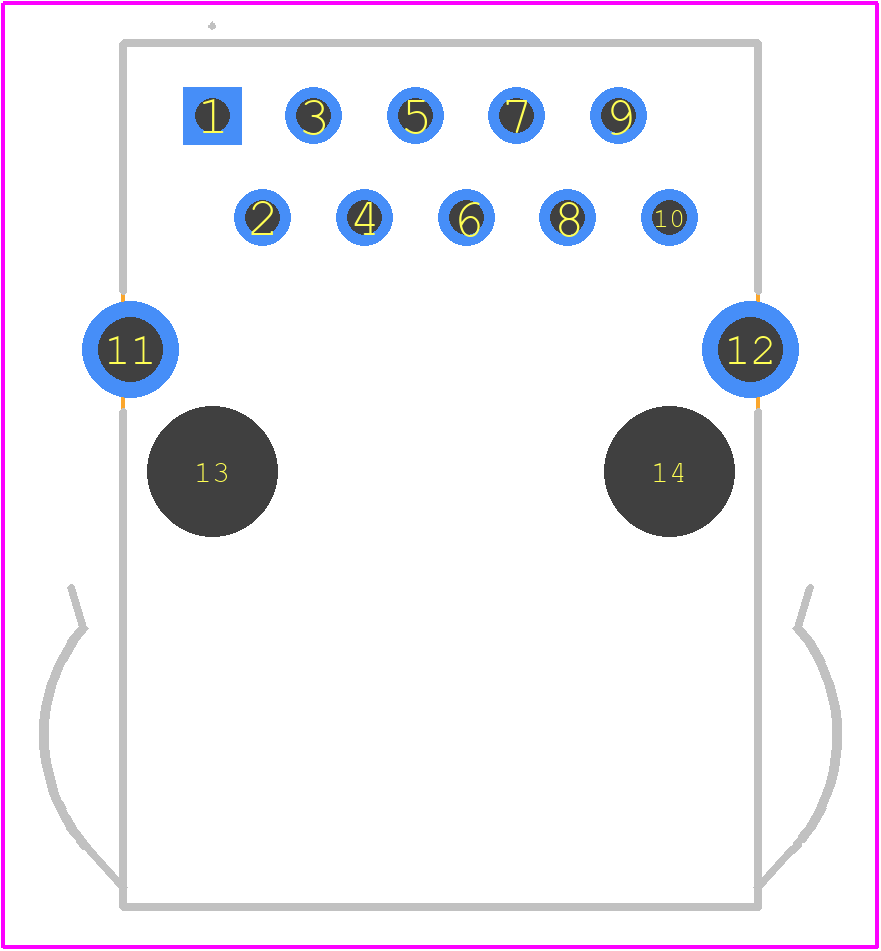

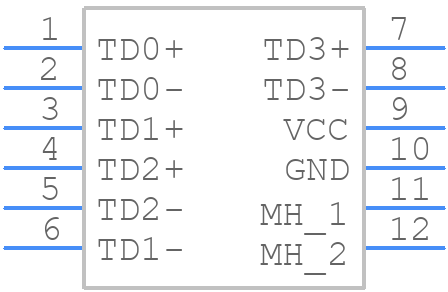

Use the download button to access the HFJ11-1G02ERL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFJ11,
or try a keyword search, such as Telecom and Datacom Connectors
