The recommended PCB layout and land pattern can be found in the HFJ11-2450ERL application note or by contacting Halo Electronics Inc directly. A well-designed PCB layout is crucial for optimal performance, and Halo Electronics Inc can provide guidance on the recommended layout and land pattern.
While the datasheet provides temperature range specifications, engineers may want to know more about the component's performance in high-temperature environments. According to Halo Electronics Inc, the HFJ11-2450ERL is designed to operate reliably up to 125°C, but derating may be necessary for extreme temperatures. Consult with Halo Electronics Inc for specific guidance.
The recommended soldering profile for the HFJ11-2450ERL can be found in the component's reflow soldering guidelines document, available from Halo Electronics Inc. A proper soldering profile is essential to ensure reliable connections and prevent damage to the component.
Yes, the HFJ11-2450ERL is a sensitive component and requires proper ESD handling and storage precautions. Halo Electronics Inc recommends following standard ESD precautions, such as using anti-static wrist straps, mats, and packaging materials, and storing the components in a dry, cool environment.
The typical lead time and minimum order quantity for the HFJ11-2450ERL can vary depending on the region, distributor, and availability. Engineers should contact Halo Electronics Inc or an authorized distributor for the most up-to-date information on lead times and order quantities.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFJ11-2450ERL Overview

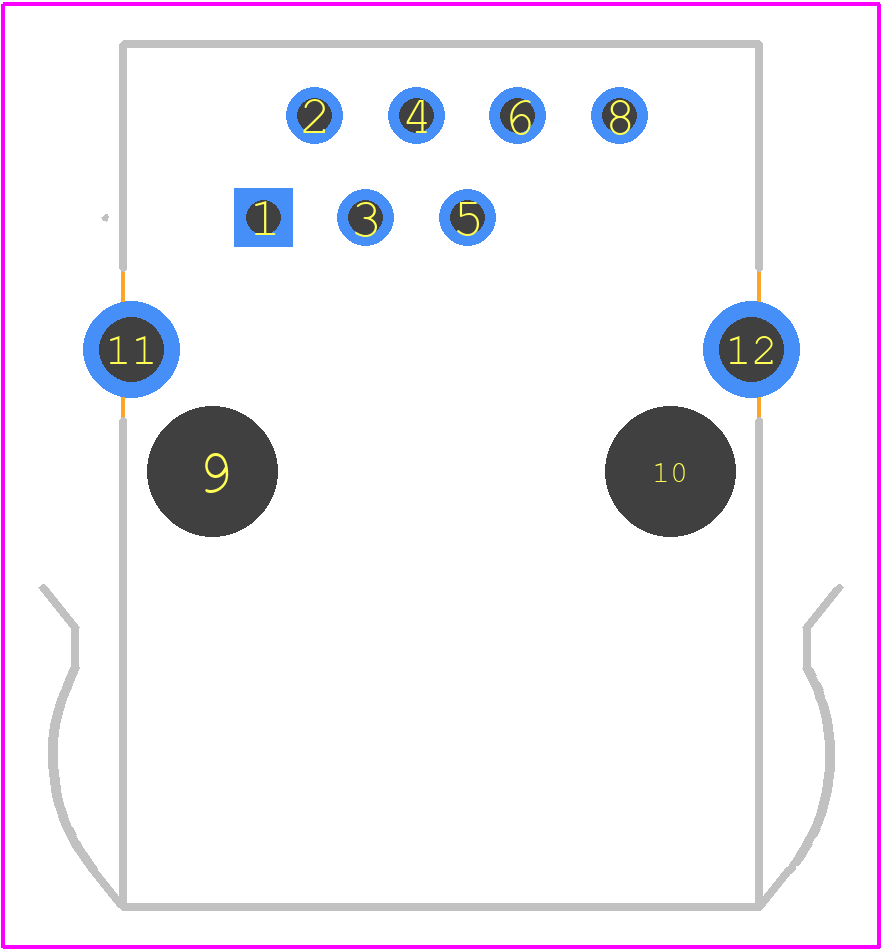

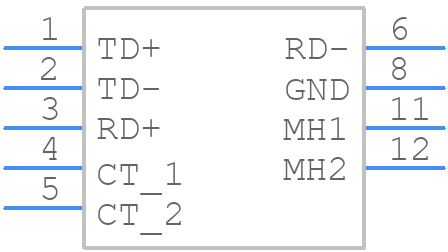

Use the download button to access the HFJ11-2450ERL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HFJ11,
or try a keyword search, such as Telecom and Datacom Connectors
