The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the device near a heat sink or thermal pad. Thermal management involves ensuring good airflow and keeping the device temperature below 125°C.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines.
The reliability and MTBF of the HFJV1-1G01RL are dependent on various factors, including operating conditions, PCB quality, and manufacturing processes. However, Halo Electronics Inc provides a typical MTBF of 1 million hours at 40°C ambient temperature.
While the HFJV1-1G01RL is designed to be robust, it's essential to follow proper mounting and soldering techniques to ensure reliability in high-vibration or high-shock environments. Consult with Halo Electronics Inc for specific guidance.
Yes, Halo Electronics Inc recommends performing electrical testing, including input/output voltage and current measurements, as well as environmental testing, such as temperature and humidity testing, to ensure the device meets the required specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFJV1-1G01RL Overview

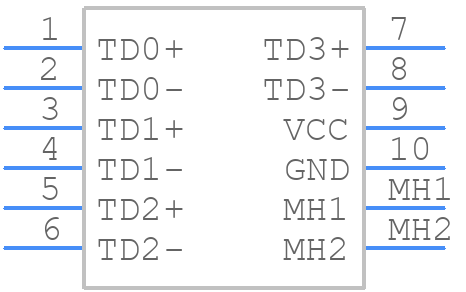

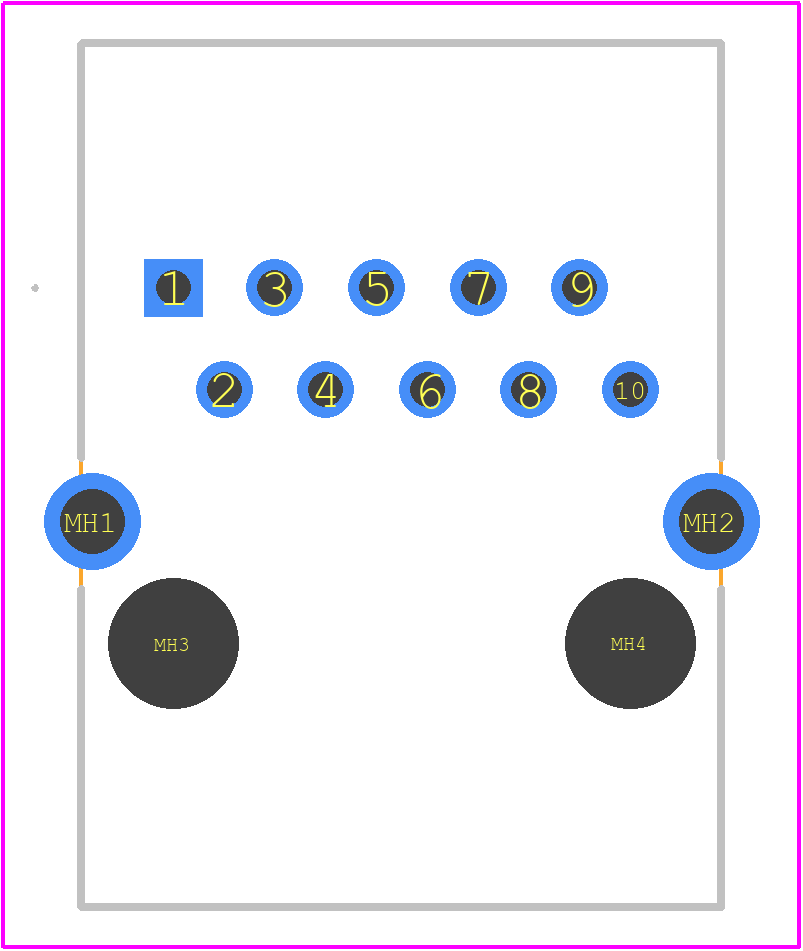

Use the download button to access the HFJV1-1G01RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFJV1,
or try a keyword search, such as Telecom and Datacom Connectors
