For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and ensure a minimum of 10mm clearance around the component for heat dissipation. A thermal via array under the component can also help with heat dissipation.
To ensure reliability and prevent overheating, ensure the component is operated within the recommended temperature range, and provide adequate heat sinking and thermal management. Also, follow the recommended reflow soldering profile to prevent thermal damage.
Recommended testing procedures include RF performance testing, DC parameter testing, and environmental testing (temperature, humidity, and vibration). Validation procedures include inspection, solderability testing, and functional testing.
Yes, the component is sensitive to ESD. Handle the component in an ESD-controlled environment, and store it in an anti-static bag or container. Ensure all personnel handling the component wear ESD-protective wrist straps or clothing.
Recommended assembly procedures include using a no-clean or water-soluble flux, and following the recommended reflow soldering profile. For rework, use a hot air rework station with a temperature-controlled heat source, and ensure the component is not exposed to temperatures above 240°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFJV1-2450RL Overview

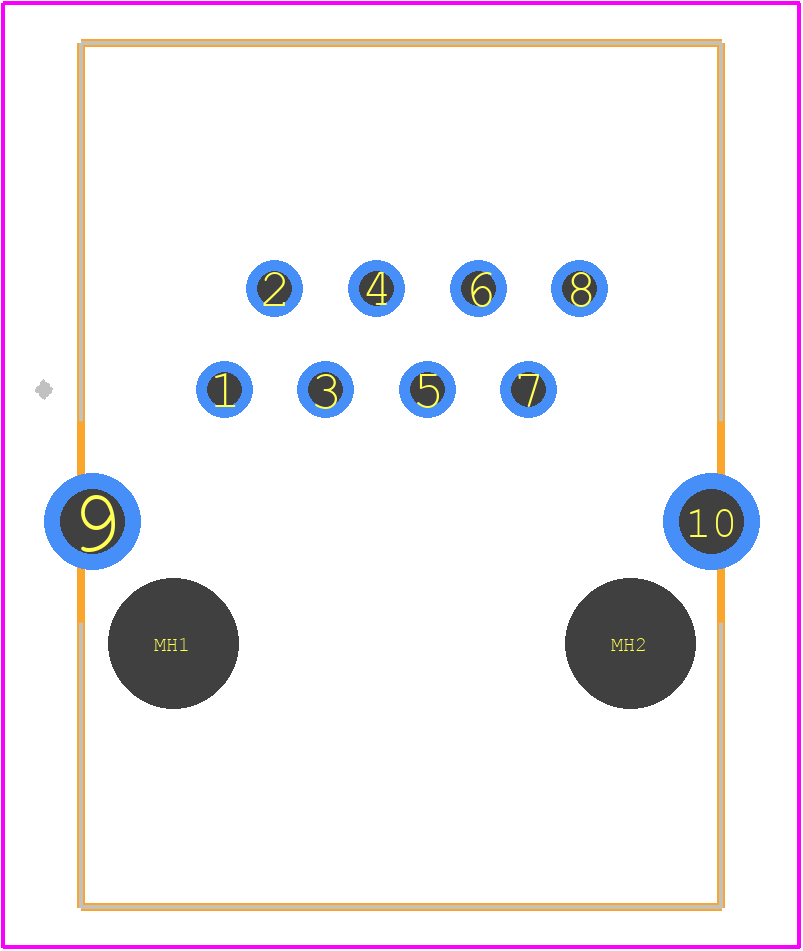

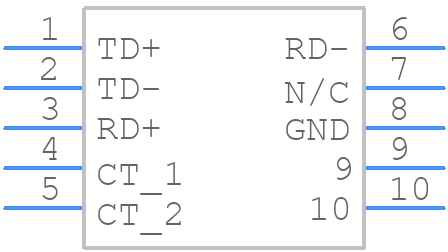

Use the download button to access the HFJV1-2450RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFJV1,
or try a keyword search, such as Telecom and Datacom Connectors
