HFKP/012-1H4T - Hongfa

HFKP/012-1H4T Details

• Manufacturer Part Number:

  HFKP/012-1H4T

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.75

• Manufacturer:

  Xiamen Hongfa Electroacoustic Co.,Ltd.

• YTEOL:

  5.5

• Body Breadth:

  22 mm

• Body Height:

  22.3 mm

• Body Length or Diameter:

  26.5 mm

• Coil Current(DC)-Max:

  0.133 A

• Coil Operate Voltage(DC):

  6.8 V

• Coil Power:

  1600 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  90 Ω

• Coil Voltage(DC)-Max:

  19.6 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  60 A

• Contact (DC) Max Rating R Load:

  60A@75VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(DC)-Max:

  75 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  500000000 Ω

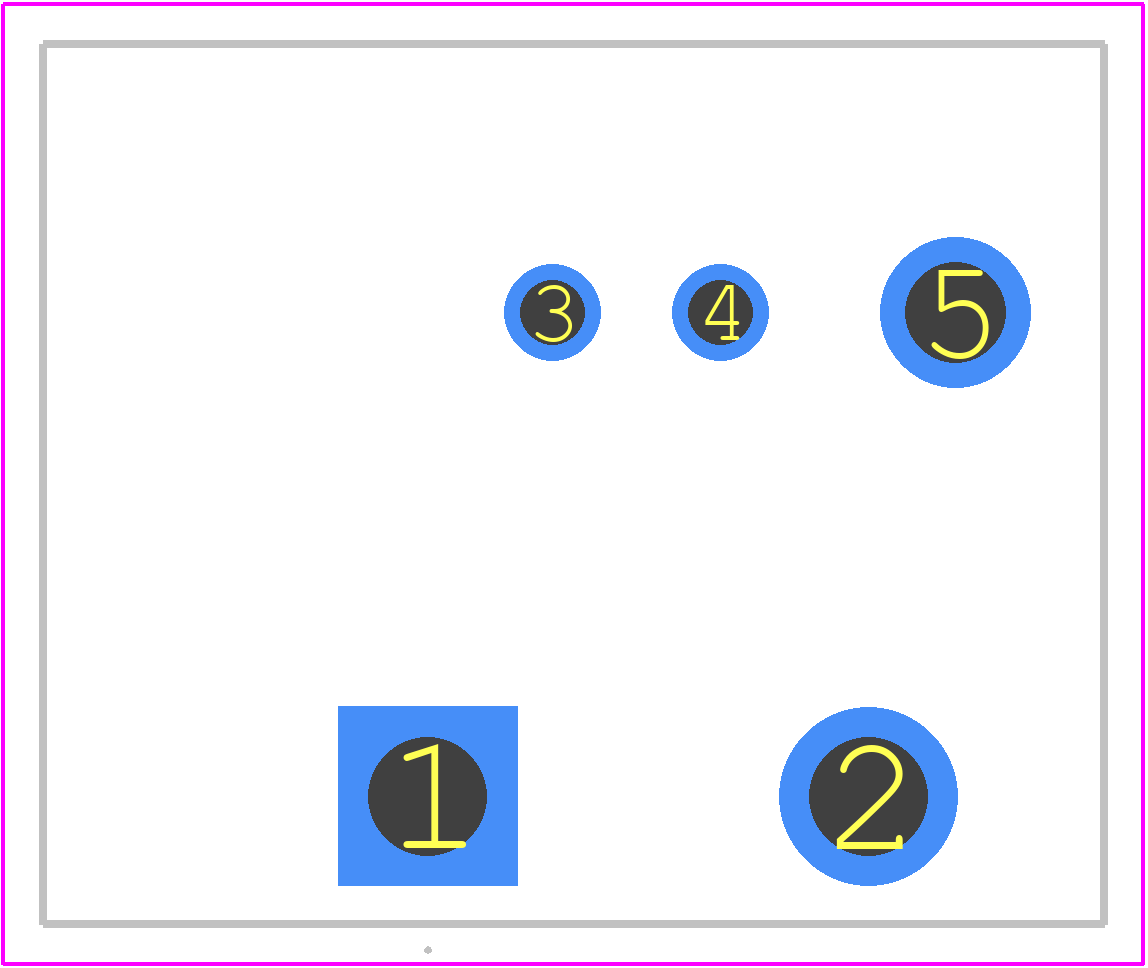

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  5

• Operate Time:

  10 ms

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  26.5mm x 22mm x 22.3mm

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
