- Part Number HFTC-9R5+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - HFTC-9R5+-2
- Released Date Jul 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HFTC-9R5+ Details
-
Manufacturer Part Number:
HFTC-9R5+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7.47
-
Filter Type:
CERAMIC HPF
HFTC-9R5+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The HFTC-9R5+ has a nominal impedance of 50 ohms. To impedance match, you can use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design process.
-
The maximum power handling of the HFTC-9R5+ is 1 watt. Exceeding this power rating can cause damage to the device or affect its performance. It's essential to ensure that the input power is within the specified rating to maintain reliability and longevity.
-
The HFTC-9R5+ is rated for operation up to 85°C. While it can tolerate high temperatures, prolonged exposure to extreme temperatures can affect its performance and reliability. It's recommended to derate the power handling and consider using a heat sink or thermal management system in high-temperature applications.
-
To troubleshoot issues with the HFTC-9R5+, start by verifying the input power and signal integrity. Check for proper impedance matching, and ensure that the device is properly soldered and mounted. Use a spectrum analyzer or oscilloscope to measure the output signal and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
Expert Contribution
System Verified
Community Approved
HFTC-9R5+ Overview

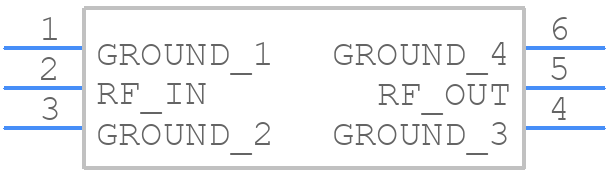

Use the download button to access the HFTC-9R5+ schematic symbol, PCB footprint, and 3D model.
