HFV9-G/12-H-R - Hongfa

Description: Electromagnetic automotive relay, SPST-NO, 12V DC coil, 35A contact rating @12V DC resistive load, coil resistance 124Ω, power consumption 1.2W, AgSnO₂ contacts, operates from 7.2–14.9V DC, temp range -40°C to 125°C, body size 22.5×15×25 mm, socket mount.

Download HFV9-G/12-H-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HFV9-G/12-H-R - Hongfa - PCB symbol
click to zoom
PCB Footprints

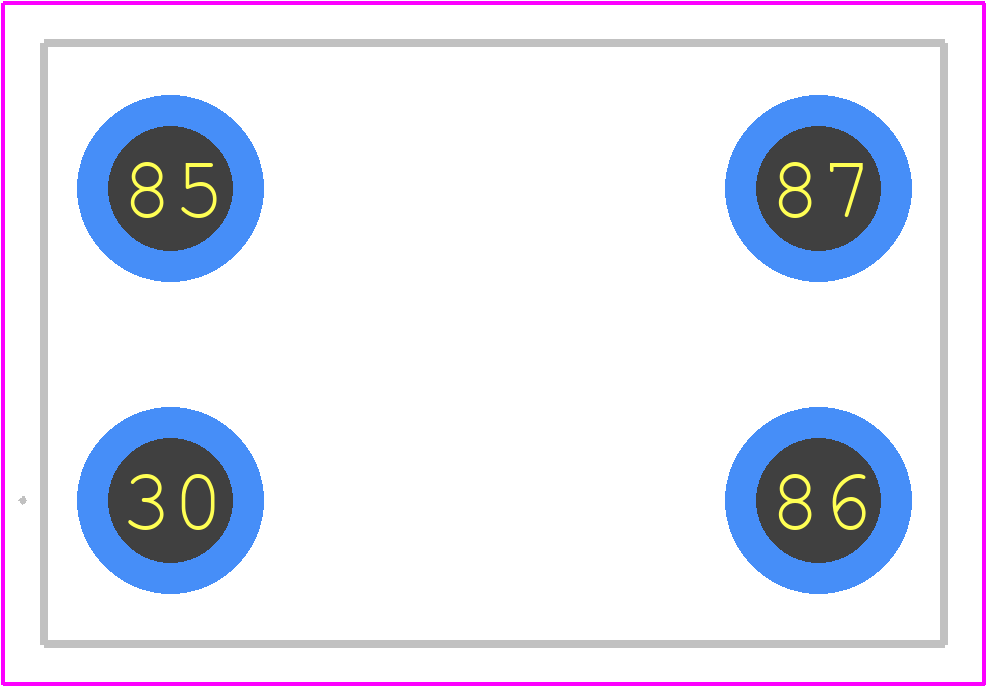

HFV9-G/12-H-R - Hongfa PCB footprint - Other - Other - HFV9-G/12-H-R-1
