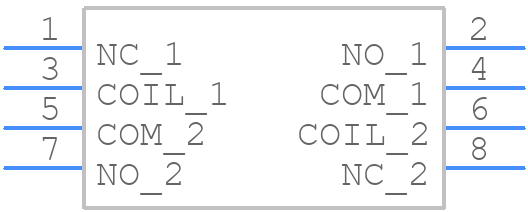

HFW1201D00 - TE Connectivity

HFW1201D00 Details

• Manufacturer Part Number:

  HFW1201D00

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  33 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  6

• Body Breadth:

  10.41 mm

• Body Height:

  10.41 mm

• Body Length or Diameter:

  20.57 mm

• Coil Current(DC)-Max:

  0.026 A

• Coil Operate Voltage(DC):

  19.4 V

• Coil Power:

  684 mW

• Coil Release Voltage(DC):

  0.98 V

• Coil Resistance:

  1250 Ω

• Coil Voltage(DC)-Max:

  32 V

• Coil Voltage-Nom:

  26.5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  .3A@115VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Rating R Load:

  2A@28VDC

• Contact Voltage(AC)-Max:

  115 V

• Contact Voltage(DC)-Max:

  28 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

• Insertion Loss-Max:

  0.4 dB

• Insulation Resistance:

  10000000000 Ω

• Isolation-Max:

  23 dB

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  8

• Operate Time:

  6 ms

• Operating Frequency-Max:

  1000 MHz

• Operating Frequency-Min:

  100 MHz

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Physical Dimension:

  20.57mm x 10.41mm x 10.41mm

• Reference Standard:

  MIL-R-39016/6

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT-CO

• Relay Type:

  RF RELAY

• Release Time:

  6 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Switching Time:

  6 ms

• Terminal Length:

  0.004699009398018796 inch

• Termination Type:

  SOLDER

• VSWR:

  1.19
