HFW1201K46 - TE Connectivity

Description: Contact Features: Contact Current Rating (Max) 2 AMP | Contact Arrangement 2 Form C, DPDT, 2 C/O | Electrical Characteristics: Input Voltage 26.5 VDC | Shock Resistance 100G's, 6ms | Coil Resistance 700 OHM | Coil Magnetic System Non-Polarized, Monostable | Actuating System DC | Coil Power Measurement Milliwatts | Vibration Resistance 30G's, 10 – 3000Hz | Coil Power Rating DC 1003 MILW | Coil Voltage Rating 26.5 VDC | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features:

Download HFW1201K46 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

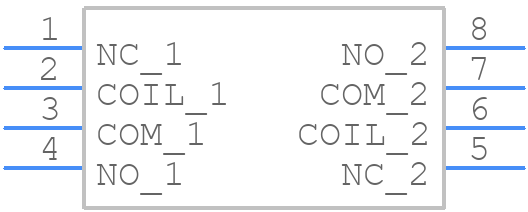

HFW1201K46 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

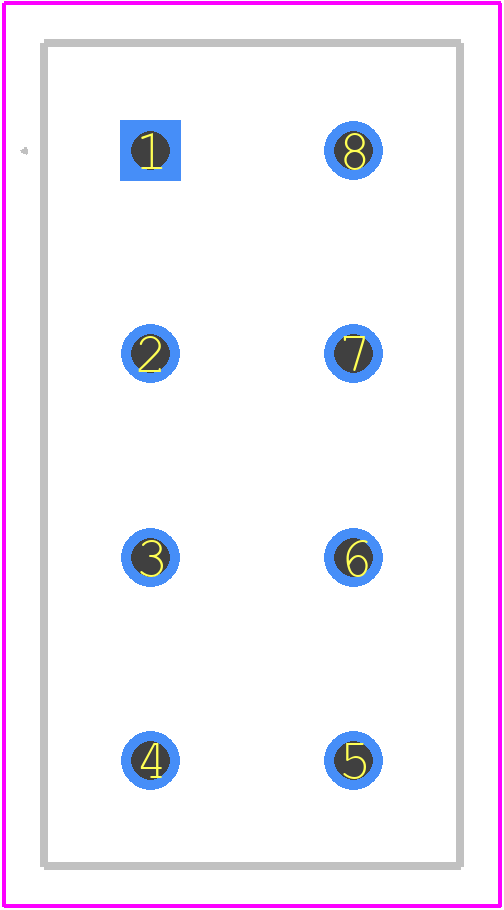

HFW1201K46 - TE Connectivity PCB footprint - Other - Other - HFW1201K46-3
click to zoom
3D Models
HFW1201K46 - TE Connectivity - 3D model - Other - HFW1201K46-3
click to zoom

HFW1201K46 Details

  • Manufacturer Part Number:

    HFW1201K46

  • Brand Name:

    CII

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    TE Connectivity

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Power:

    1003 mW

  • Coil Resistance:

    700 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

HFW1201K46 Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and signal integrity.
  • TE Connectivity provides guidelines for soldering and rework in their application notes. It's crucial to follow these guidelines to avoid damaging the component. Additionally, using a soldering iron with a temperature-controlled tip and a low-temperature solder can help prevent damage.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the component's performance may degrade at extreme temperatures. It's recommended to operate the component within a temperature range of -20°C to 100°C for optimal performance.
  • The HFW1201K46 is an ESD-sensitive component. It's essential to handle the component with ESD-protective equipment, such as wrist straps and mats, and to follow proper ESD-handling procedures to prevent damage.
  • Store the HFW1201K46 in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the component, and handle it by the edges to prevent damage to the pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HFW1201K46 Overview

Use the download button to access the HFW1201K46 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFW12, or try a keyword search, such as Power/Signal Relays
