HFW1201L02M - TE Connectivity

Description: Contact Features: Contact Current Rating (Max) 2 AMP | Contact Arrangement 2 Form C, DPDT, 2 C/O | Electrical Characteristics: Coil Power Measurement Milliwatts | Coil Resistance 27 OHM | Coil Magnetic System Non-Polarized, Monostable | Coil Power Rating DC 926 MILW | Coil Voltage Rating 5 VDC | Actuating System DC | Shock Resistance 100G's, 6ms | Input Voltage 5 VDC | Vibration Resistance 30G's, 10 – 3000Hz | Mechanical Attachment: Product Mount Type Printed Circuit Board | Product Type Features: Relay C

Download HFW1201L02M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

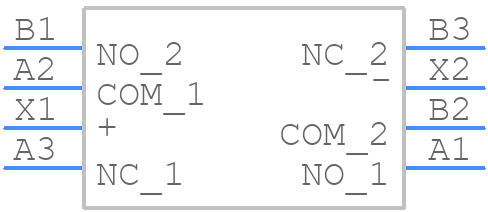

HFW1201L02M - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
HFW1201L02M - TE Connectivity PCB footprint - Other - Other - HFW1201L02M-1
click to zoom
3D Models
HFW1201L02M - TE Connectivity - 3D model - Other - HFW1201L02M-1
click to zoom

HFW1201L02M Details

  • Manufacturer Part Number:

    HFW1201L02M

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • Coil Power:

    926 mW

  • Coil Resistance:

    27 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
