Part Image

HHM1603A1 - TDK

Description: Baluns, Pass Band=2300 to 2700MHz, Bal. Port Zc=100Ohm

Download HHM1603A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

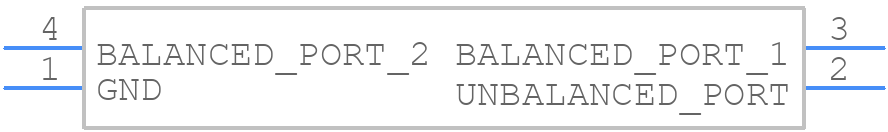

Symbol
HHM1603A1 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM1603A1 - TDK PCB footprint - Other - Other - HHM1603A1
click to zoom
3D Models
HHM1603A1 - TDK - 3D model - Other - HHM1603A1
click to zoom

HHM1603A1 Details

  • Manufacturer Part Number:

    HHM1603A1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Cut-off Frequency-Max:

    2700 MHz

  • Cut-off Frequency-Min:

    2300 MHz

  • Height:

    0.25 mm

  • Insertion Loss:

    0.5 dB

  • Length:

    0.65 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.5 mm

HHM1603A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the HHM1603A1 can be found in the TDK Corporation's application note or on their website. It is essential to follow the recommended land pattern to ensure proper mounting and to prevent damage to the component.
  • To prevent damage, it is recommended to handle the HHM1603A1 by the edges, avoid touching the pins, and use an anti-static wrist strap or mat during assembly. It is also essential to follow the recommended storage and handling procedures outlined in the datasheet.
  • The maximum operating temperature range for the HHM1603A1 is -40°C to +125°C. However, it is essential to note that the component's performance may degrade at extreme temperatures, and it is recommended to operate within the recommended temperature range for optimal performance.
  • The HHM1603A1 is designed to withstand moderate vibration levels. However, it is essential to evaluate the component's performance in the specific vibration environment to ensure it meets the required specifications. TDK Corporation may provide additional information or support for high-vibration applications.
  • To troubleshoot issues with the HHM1603A1, it is recommended to follow a systematic approach, checking the component's power supply, signal integrity, and environmental factors. TDK Corporation may provide additional troubleshooting guides or support for specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HHM1603A1 Overview

Use the download button to access the HHM1603A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM16, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
