TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the HHM1710D1. The component should be placed near the edge of the board to minimize radiation. A detailed layout guide is available in the TDK application note.
Decoupling capacitors (e.g., 100nF and 10uF) should be placed as close as possible to the HHM1710D1's power pins. The capacitors should be connected between the power pins and the ground plane. Additionally, a 0.1uF capacitor should be connected between the VCC and GND pins.
The HHM1710D1 is rated for operation from -40°C to +85°C. However, the device's performance may degrade at temperatures above 70°C. It is recommended to operate the device within the -20°C to +60°C range for optimal performance.
The HHM1710D1 is not hermetically sealed, so it is not recommended for use in humid environments. If operation in a humid environment is necessary, consider using a conformal coating or potting the device to protect it from moisture.
Start by verifying the power supply voltage and ensuring that the device is properly decoupled. Check the PCB layout for any potential radiation issues. If the issue persists, consult the TDK application note for troubleshooting guidelines or contact TDK support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM1710D1 Overview

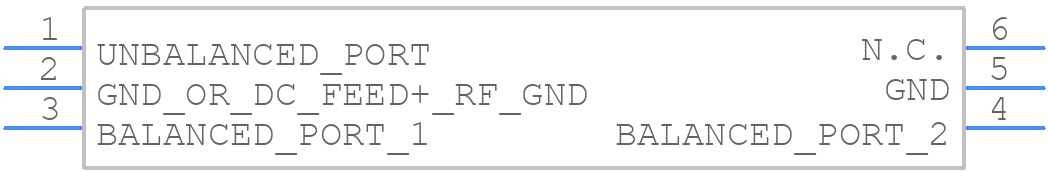

Use the download button to access the HHM1710D1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
