The recommended land pattern for the HHM17139B1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, handle the HHM17139B1 by the edges, avoiding touching the pins or the component body. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for the HHM17139B1 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines to ensure reliable operation.
The HHM17139B1 is rated for operation up to 125°C. However, it's essential to consider the component's power dissipation, thermal resistance, and the surrounding environment's temperature to ensure reliable operation. Consult the datasheet or contact TDK Corporation for specific guidance on high-temperature applications.
Store the HHM17139B1 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Keep the components in a dry, clean environment, and avoid mixing them with other components to prevent damage or contamination.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM17139B1 Overview

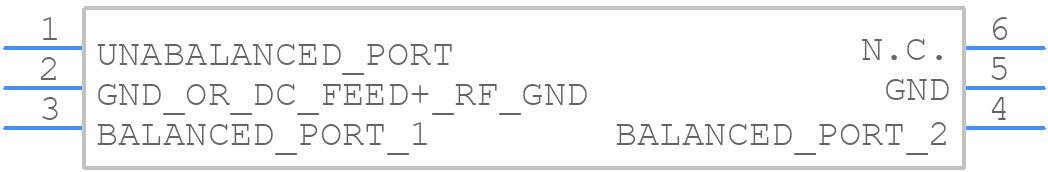

Use the download button to access the HHM17139B1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17,
or try a keyword search, such as RF Transformers
