TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the HHM17139B2. The component should be placed near the edge of the board to minimize radiation. A detailed layout guide is available in the TDK application note.
Decoupling capacitors (e.g., 100nF and 10uF) should be placed as close as possible to the HHM17139B2. The capacitors should be connected between the power pins and the ground plane. Additionally, a 0.1uF capacitor should be connected between the VCC and GND pins of the HHM17139B2.
The HHM17139B2 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It is recommended to operate the device within the -20°C to +85°C range for optimal performance.
Yes, the HHM17139B2 is designed to withstand vibrations up to 10G. However, it is recommended to follow TDK's guidelines for mounting and securing the device to ensure reliable operation in high-vibration environments.
TDK provides a troubleshooting guide in the application note, which covers common issues such as noise, oscillation, and thermal shutdown. Engineers can also contact TDK's technical support for assistance with troubleshooting.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM17139B2 Overview

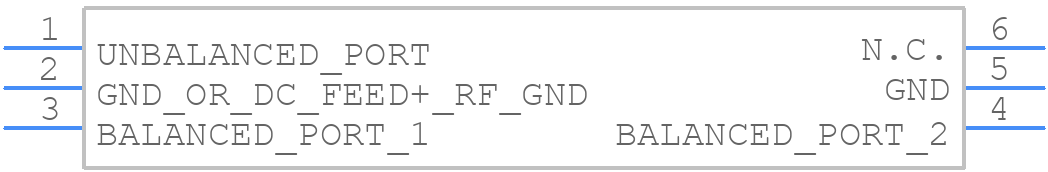

Use the download button to access the HHM17139B2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
