TDK recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 1 oz copper thickness is recommended for the PCB.
The HHM1713E2 has a high power density, so thermal management is crucial. TDK recommends using a heat sink with a thermal conductivity of at least 1 W/m-K and ensuring good airflow around the component.
TDK recommends derating the voltage by 10% to ensure reliable operation and prevent overheating. For example, if the rated voltage is 100V, the maximum allowable voltage would be 90V.
The HHM1713E2 is designed to operate in a humidity range of 40% to 80% RH. However, TDK recommends taking precautions to prevent moisture ingress, such as using a conformal coating or potting the component.
TDK recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. A solder with a melting point of 217°C (423°F) or higher is recommended.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM1713E2 Overview

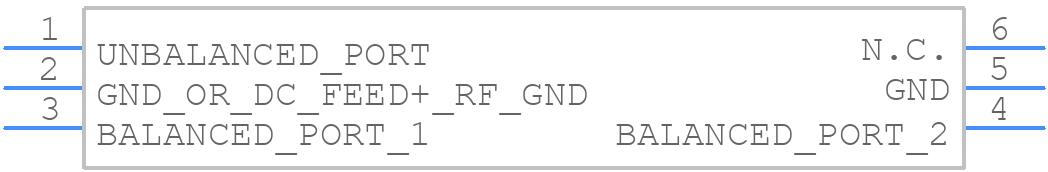

Use the download button to access the HHM1713E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
