TDK recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 1 oz copper thickness is recommended for the PCB.
Handle the component by the edges to prevent damage to the internal components. Avoid touching the pins or the body of the component to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat if possible.
The HHM17146A1 is rated for operation from -40°C to +125°C. However, the component's performance may degrade at extreme temperatures, and the maximum operating temperature range may vary depending on the specific application.
The HHM17146A1 is designed to withstand moderate vibration levels. However, it's recommended to perform vibration testing to ensure the component's reliability in high-vibration environments. TDK recommends following the IEC 60068-2-6 standard for vibration testing.
Store the HHM17146A1 in a dry, cool place away from direct sunlight. The storage temperature should be between -10°C and +30°C, and the humidity should be below 70%. Avoid storing the component in a location with high electromagnetic fields.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HHM17146A1 Overview

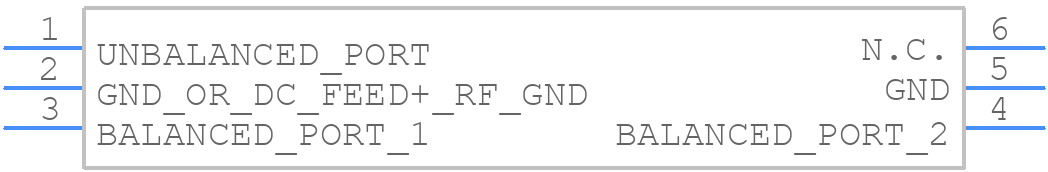

Use the download button to access the HHM17146A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17,
or try a keyword search, such as RF Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
