HHM17147A1 - TDK

Description: Baluns, Pass Band=673 to 2700MHz, Bal. Port Zc=100Ohm

Download HHM17147A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

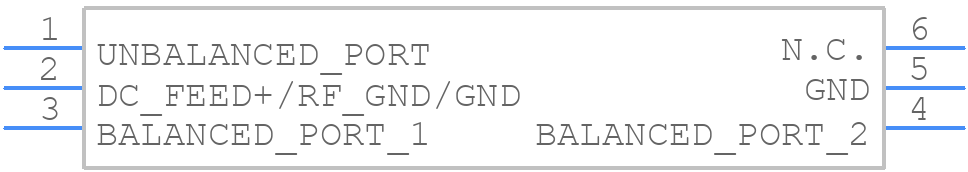

Symbol
HHM17147A1 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM17147A1 - TDK PCB footprint - Other - Other - HHM22137A2-3
click to zoom
3D Models
HHM17147A1 - TDK - 3D model - Other - HHM22137A2-3
click to zoom

HHM17147A1 Details

  • Manufacturer Part Number:

    HHM17147A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Cut-off Frequency-Min:

    673 MHz

  • Height:

    0.6 mm

  • Insertion Loss:

    2.5 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.8 mm

HHM17147A1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for HHM17147A1 can be found in the TDK Corporation's application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
  • Handle the HHM17147A1 by the edges to prevent damage to the component. Avoid touching the component's leads or body to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat if possible.
  • The maximum reflow temperature for HHM17147A1 is 260°C, as specified in the datasheet. However, it's recommended to follow the TDK Corporation's recommended reflow profile to ensure the component's reliability.
  • The HHM17147A1 is designed to withstand moderate vibration. However, for high-vibration environments, it's recommended to consult with TDK Corporation's technical support team to determine the component's suitability and potential modifications to the design.
  • Store the HHM17147A1 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Follow the TDK Corporation's recommended storage conditions to maintain the component's shelf life.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HHM17147A1 Overview

Use the download button to access the HHM17147A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
