HHM1715E1 - TDK

Description: Baluns, Pass Band=3300 to 3900MHz, Bal. Port Zc=100Ohm

Download HHM1715E1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

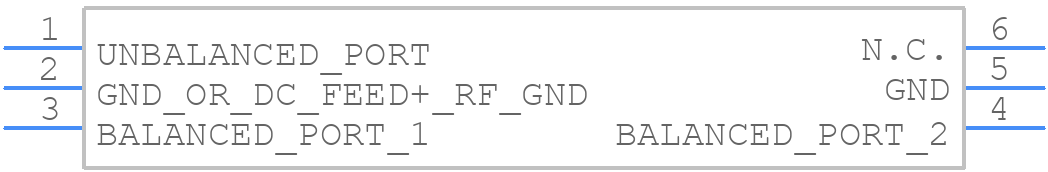

HHM1715E1 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM1715E1 - TDK PCB footprint - Other - Other - HHM1715E1-1
click to zoom
3D Models
HHM1715E1 - TDK - 3D model - Other - HHM1715E1-1
click to zoom

HHM1715E1 Details

  • Manufacturer Part Number:

    HHM1715E1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    3

  • Application:

    MATCHING

  • Cut-off Frequency-Min:

    3300 MHz

  • Height:

    0.6 mm

  • Insertion Loss:

    1 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    3900000 kHz

  • Operating Frequency-Min:

    3300000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Power Rating:

    0.5 W

  • Primary Impedance:

    50 OHMS

  • Secondary Impedance:

    100 OHMS

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.8 mm

HHM1715E1 Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a solid ground plane and a minimum of 10 mils (0.25 mm) clearance around the component to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • To minimize high-frequency noise and EMI, use a shielded enclosure, keep the component away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out noise. Additionally, ensure proper grounding and decoupling of the component.
  • The HHM1715E1 is rated for operation from -40°C to +125°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines.
  • Yes, the HHM1715E1 is designed to withstand vibrations up to 10 G (rms) from 10 Hz to 2 kHz, but ensure proper mounting and secure the component to prevent mechanical stress.
  • Follow proper storage and handling procedures, avoid excessive mechanical stress, and ensure the component is operated within its specified ratings. Regularly inspect the component for signs of wear or damage, and replace it if necessary.
