HHM1733B1 - TDK

Description: Baluns, Pass Band=4900 to 5950MHz, Bal. Port Zc=50Ohm RF Balun 4.9GHz ~ 5.95GHz 50 / 50Ohm 0603 (1608 Metric)

Download HHM1733B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

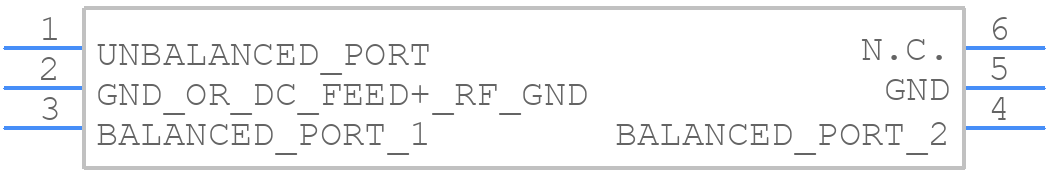

HHM1733B1 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM1733B1 - TDK PCB footprint - Other - Other - HHM1733B1
click to zoom
3D Models
HHM1733B1 - TDK - 3D model - Other - HHM1733B1
click to zoom

HHM1733B1 Details

  • Manufacturer Part Number:

    HHM1733B1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6.68

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    5950 MHz

  • Cut-off Frequency-Min:

    4900 MHz

  • Height:

    0.6 mm

  • Insertion Loss:

    1.2 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    5900000 kHz

  • Operating Frequency-Min:

    4900000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    REEL

  • Primary Impedance:

    50 OHMS

  • Secondary Impedance:

    50 OHMS

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.8 mm

HHM1733B1 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the HHM1733B1 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Handle the HHM1733B1 by the edges or the recommended handling areas to prevent damage to the internal components. Avoid touching the component's leads or the ceramic body to prevent electrostatic discharge (ESD) damage.
  • The maximum allowable voltage derating for the HHM1733B1 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines to ensure reliable operation.
  • The HHM1733B1 is rated for operation up to 125°C. However, it's essential to consider the component's power derating and thermal management to ensure reliable operation in high-temperature environments.
  • Store the HHM1733B1 in a dry, cool place, away from direct sunlight and moisture. Use airtight packaging or desiccant packets to maintain a low humidity environment. Follow the IPC-J-STD-033 standard for moisture-sensitive device handling and storage.
