Part Image

HHM1776B3 - TDK

Description: Baluns, Pass Band=880 to 960MHz, Bal. Port Zc=50Ohm,RF Balun 880MHz ~ 960MHz 50 / 50Ohm 0603 (1608 Metric)

Download HHM1776B3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

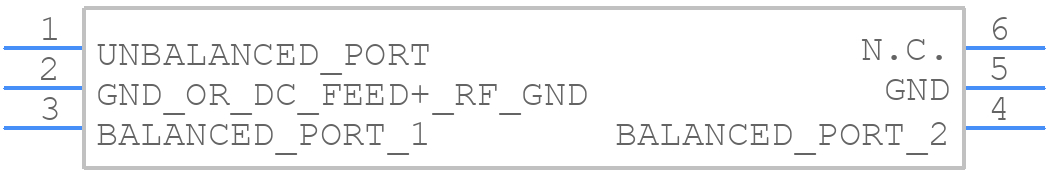

Symbol
HHM1776B3 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM1776B3 - TDK PCB footprint - Other - Other - HHM1776B3
click to zoom
3D Models
HHM1776B3 - TDK - 3D model - Other - HHM1776B3
click to zoom

HHM1776B3 Details

  • Manufacturer Part Number:

    HHM1776B3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    960 MHz

  • Cut-off Frequency-Min:

    880 MHz

  • Height:

    0.6 mm

  • Insertion Loss:

    1.2 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.8 mm

HHM1776B3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the HHM1776B3 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • To prevent damage, handle the HHM1776B3 by the edges, avoiding touching the pins or the component body. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Store the components in their original packaging or in a dry, cool place.
  • The maximum allowable voltage derating for the HHM1776B3 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines to ensure reliable operation.
  • The HHM1776B3 is rated for operation up to 125°C. However, it's essential to consider the temperature derating curve and the specific application requirements. Consult the datasheet or contact TDK Corporation for guidance on using the HHM1776B3 in high-temperature environments.
  • To troubleshoot issues with the HHM1776B3, start by verifying the component's specifications and application notes. Check for proper soldering, voltage, and current ratings. Use a multimeter to measure voltage and current, and consult the datasheet or contact TDK Corporation's technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HHM1776B3 Overview

Use the download button to access the HHM1776B3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM17, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
