HHM22139A2 - TDK

Description: Directional Couplers, Pass Band1=698 to 915MHz;Pass Band2=1710 to 2025MHz;Pass Band3=2300 to 2620MHz, Coup. Fact.1=25 +/- 2dB;Coup. Fact.2=24 +/- 2.5dB;Coup. Fact.3=25 +/- 2.5dB

Download HHM22139A2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

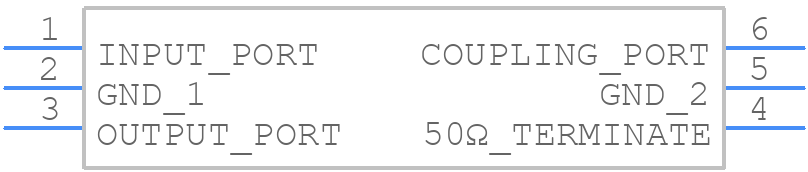

HHM22139A2 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM22139A2 - TDK PCB footprint - Other - Other - HHM22139A2
click to zoom
3D Models
HHM22139A2 - TDK - 3D model - Other - HHM22139A2
click to zoom

HHM22139A2 Details

  • Manufacturer Part Number:

    HHM22139A2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    0.2 dB

  • Isolation-Min:

    45 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    2620 MHz

  • Operating Frequency-Min:

    698 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC6,.03,22

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.07
