Part Image

HHM2293A1 - TDK

Description: Signal Conditioning MULTILAYER DIVIDER W-LAN/BT 2.4-2.5GHz

Download HHM2293A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

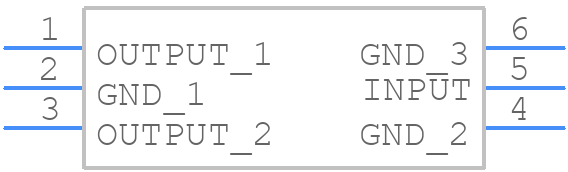

Symbol
HHM2293A1 - TDK - PCB symbol
click to zoom
PCB Footprints
HHM2293A1 - TDK PCB footprint - Other - Other - HHM2293A1-1
click to zoom
3D Models
HHM2293A1 - TDK - 3D model - Other - HHM2293A1-1
click to zoom

HHM2293A1 Details

  • Manufacturer Part Number:

    HHM2293A1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    34.77 dBm

  • Insertion Loss-Max:

    4 dB

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

HHM2293A1 Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
  • TDK recommends following the recommended derating curves for temperature and voltage, and ensuring proper thermal management, such as using a heat sink or thermal interface material, to prevent overheating.
  • TDK recommends limiting voltage transients to 10% of the rated voltage to prevent damage to the device. Exceeding this limit may cause permanent damage or affect the device's reliability.
  • Yes, HHM2293A1 is suitable for high-frequency applications up to 1 GHz. However, TDK recommends following the recommended layout and impedance matching guidelines to minimize signal loss and ensure optimal performance.
  • TDK recommends following a systematic troubleshooting approach, including checking the PCB layout, voltage and current ratings, and thermal management. TDK also provides application notes and technical support for troubleshooting assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HHM2293A1 Overview

Use the download button to access the HHM2293A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HHM22, or try a keyword search, such as RF/Microwave Couplers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
