HI1-0201-2 - Renesas Electronics

Description: HI-200/HI-201 (dual/quad) are monolithic devices comprising independently selectable SPST switches which feature fast switching speeds (HI-200 240ns, and HI-201 185ns) combined with low power dissipation (15mW at 25°C). Each switch provides low ON resistance operation for input signal voltage up to the supply rails and for signal current up to 80mA. Rugged DI construction eliminates latch-up and substrate SCR failure modes. All devices provide break-before-make switching and are TTL and CMOS compatible for

Download HI1-0201-2 Model

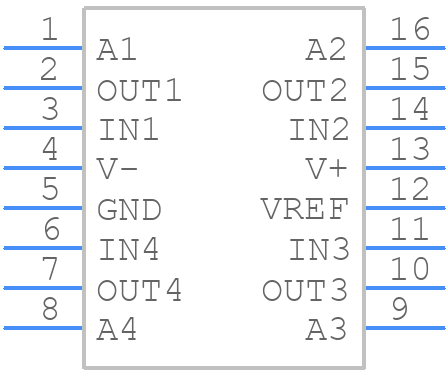

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

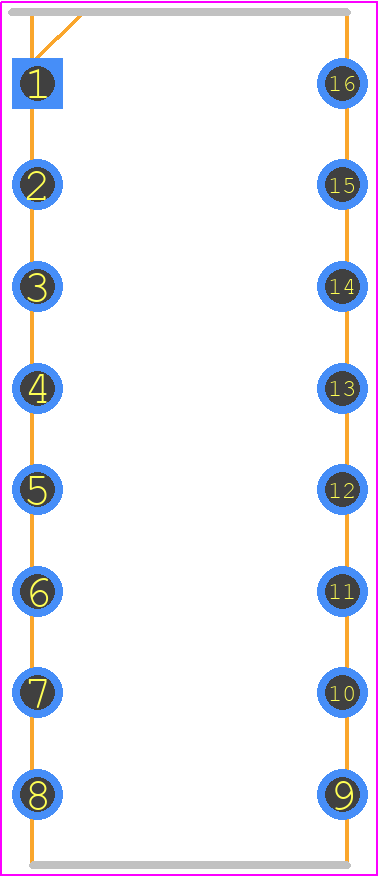

HI1-0201-2 - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - F16.3
click to zoom
3D Models
HI1-0201-2 - Renesas Electronics  - 3D model - Ceramic Dual-In-Line Packages - F16.3
click to zoom

HI1-0201-2 Details

  • Manufacturer Part Number:

    HI1-0201-2

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CERDIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    F16.3

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    17 V

  • JESD-30 Code:

    R-CDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.3 mm

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    80 dB

  • On-state Resistance-Max (Ron):

    80 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    CERAMIC

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    500 ns

  • Switch-on Time-Max:

    500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.3 mm

HI1-0201-2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for HI1-0201-2 is 1.8V to 3.6V.
  • To ensure reliable communication with the HI1-0201-2, make sure to follow the recommended PCB layout guidelines, use a stable clock signal, and implement proper signal termination.
  • The maximum data transfer rate of the HI1-0201-2 is 100 Mbps.
  • Implement a robust error handling mechanism that includes retry mechanisms, error detection, and correction to ensure reliable data transfer.
  • The power consumption of the HI1-0201-2 is typically around 10mA at 1.8V, but this can vary depending on the operating frequency and mode.
