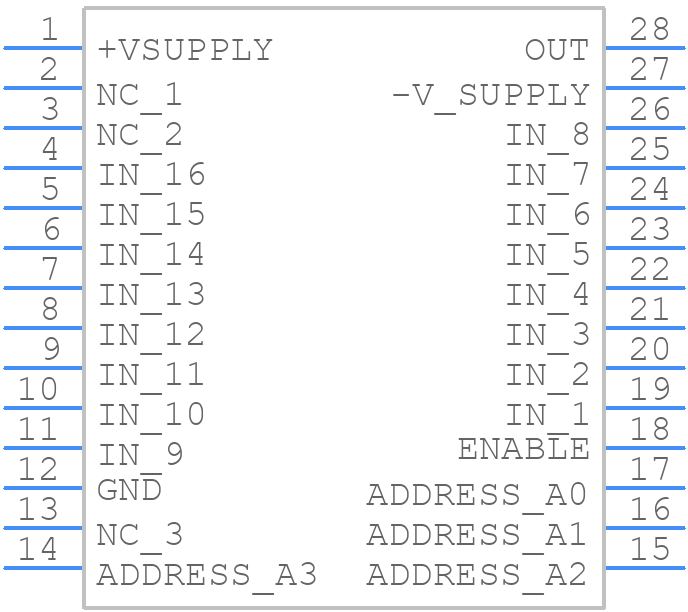

Symbol

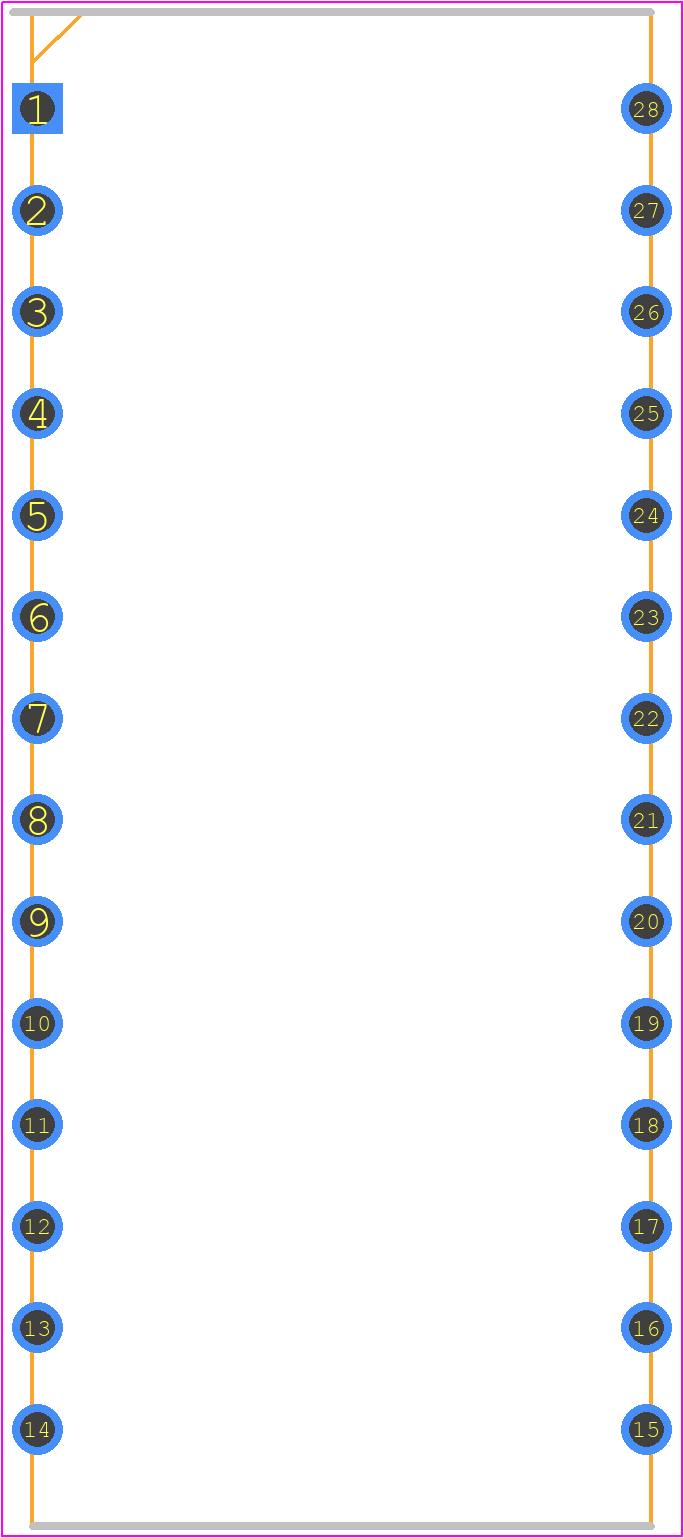

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HI1-0506-2Z
- Part Number HI1-0506-2Z
- Manufacturer Renesas Electronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - F28.6 MIL-STD-1835 GDIP1-T28 (D-10, CONFIGURATION A) 28 LEAD CERAMIC DUAL-IN-LINE FRIT SEAL PACKAGE
- Released Date Apr 6, 2021
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
HI1-0506-2Z Details
-
Manufacturer Part Number:
HI1-0506-2Z
-
Manufacturer:
Renesas Electronics Corporation
Trust Checks
Community Provided
System Verified
Community Approved
HI1-0506-2Z Overview
Use the download button to access the HI1-0506-2Z schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HI1-0,
or try a keyword search, such as Multiplexers or Switches
