HI1-565ATD-2 - Renesas Electronics

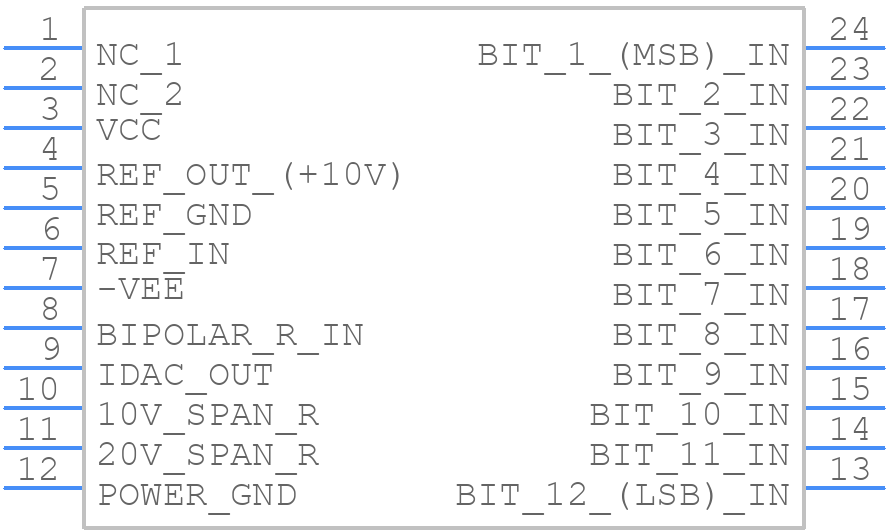

HI1-565ATD-2 Details

• Manufacturer Part Number:

  HI1-565ATD-2

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

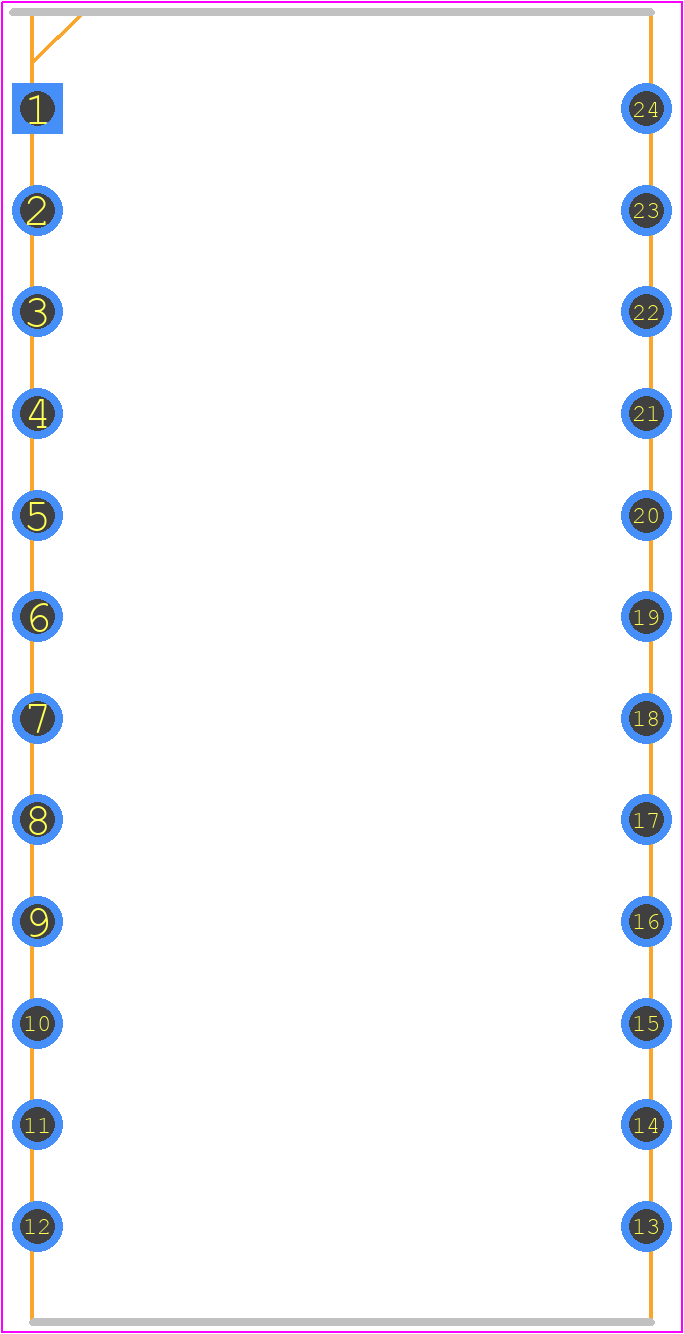

• Part Package Code:

  SBDIP

• Package Description:

  DIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  D24.6

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  5

• Analog Output Voltage-Max:

  10 V

• Analog Output Voltage-Min:

  -1.5 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  R-CDIP-T24

• JESD-609 Code:

  e0

• Linearity Error-Max (EL):

  0.006%

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.72 mm

• Settling Time-Nom (tstl):

  0.35 µs

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
