Description:The HI-546, HI-547, HI-548 and HI-549 are analog multiplexers with active overvoltage protection and guaranteed rON matching. Analog input levels may greatly exceed either power supply without damaging the device or disturbing the signal path of other channels. Active protection circuitry assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand constant 70VP-P levels with ±15V supplies. Digital inputs will also sustain continuo
Renesas provides a recommended PCB layout guide for the HI3-0548-5Z, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's essential to follow this guide to prevent overheating and ensure reliable operation.
The HI3-0548-5Z can deliver high current outputs, which require proper PCB design and component selection. Engineers should ensure that the PCB traces, vias, and components can handle the high current, and consider using thermal relief patterns, thick copper traces, and high-current-rated components.
Renesas recommends following standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, engineers should ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays, to prevent damage to the HI3-0548-5Z.
While the HI3-0548-5Z has a specified operating temperature range, engineers should consider the thermal derating curves and ensure that the device is properly cooled to prevent overheating. In high-temperature environments, engineers may need to implement additional cooling measures, such as heat sinks or fans, to maintain reliable operation.
Renesas provides a troubleshooting guide for the HI3-0548-5Z, which includes steps for identifying and resolving common issues, such as output voltage errors, current limiting, and thermal shutdown. Engineers should also consult the datasheet and application notes for specific guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HI3-0548-5Z Overview

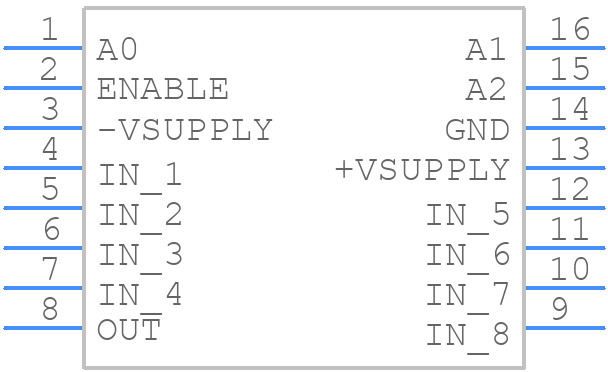

Use the download button to access the HI3-0548-5Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HI3-0,
or try a keyword search, such as Multiplexers or Switches
