HI9P0506-9Z - Renesas Electronics

Description: The HI-506/HI-507 and HI-508/HI-509 monolithic CMOS multiplexers each include an array of sixteen and eight analog switches respectively, a digital decoder circuit for channel selection, voltage reference for logic thresholds, and an enable input for device selection when several multiplexers are present. The Dielectric Isolation (DI) process used in fabrication of these devices eliminates the problem of latchup. DI also offers much lower substrate leakage and parasitic capacitance than conventional junctio

Download HI9P0506-9Z Model

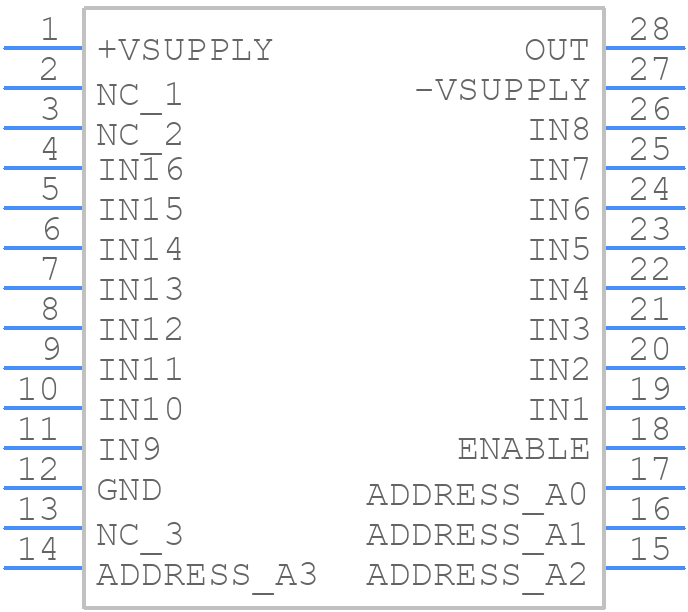

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HI9P0506-9Z - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M28.3-28 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE
click to zoom
3D Models
HI9P0506-9Z - Renesas Electronics  - 3D model - Small Outline Packages - M28.3-28 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE
click to zoom

HI9P0506-9Z Details

  • Manufacturer Part Number:

    HI9P0506-9Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Min (Vsup):

    -10 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    9 Ω

  • On-state Resistance-Max (Ron):

    400 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    1000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

HI9P0506-9Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current specifications, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal simulation tools to optimize the design.
  • A 10uF ceramic capacitor with a 10nF ceramic capacitor in parallel, placed as close to the device as possible, is recommended for decoupling. The capacitors should be connected between the power pins and the ground pin.
  • Check the power supply voltage, clock signal, and input/output signals for correctness. Verify that the device is properly configured and that the firmware is correct. Use oscilloscopes and logic analyzers to debug the issue.
  • Not using the internal voltage regulator may require an external voltage regulator, which can increase the overall system cost and complexity. However, it may also provide more flexibility in terms of voltage regulation and noise reduction.
