Description:This family of CMOS analog switches offers low resistance switching performance for analog voltages up to the supply rails and for signal currents up to 80mA. ON resistance is low and stays reasonably constant over the full range of operating signal voltage and current. rON remains exceptionally constant for input voltages between +5V and -5V and currents up to 50mA. Switch impedance also changes very little over temperature, particularly between 0°C and 75°C. rON is nominally 25Ω for HI-5049 and HI-5051 an
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
The HI9P5043-5Z has an internal overcurrent protection (OCP) feature, but it's recommended to add external OCP circuitry to ensure reliable protection. A dedicated OCP IC or a discrete component-based solution can be used, depending on the specific application requirements.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to use a low-ESR capacitor with a capacitance value between 10uF to 22uF, and a voltage rating that matches the input voltage. Renesas also provides guidance on input capacitor selection in their application notes.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding components to minimize electromagnetic interference. It's also recommended to perform EMC testing and certification according to relevant industry standards.
The recommended operating temperature range for the HI9P5043-5Z is -40°C to +125°C, but it's essential to consider the specific application requirements and ensure that the device operates within the recommended temperature range to maintain reliability and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HI9P5043-5Z Overview

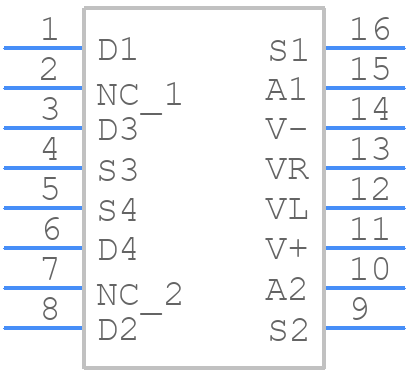

Use the download button to access the HI9P5043-5Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HI9P5,
or try a keyword search, such as Multiplexers or Switches
