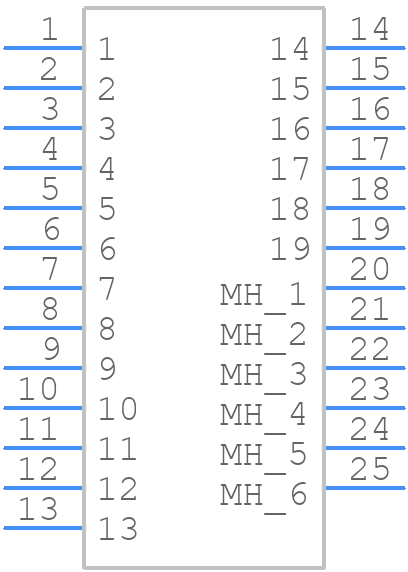

HIE-N19R-S02A footprint, schematic symbol and 3D model by J.S.T.

Symbol

click to zoom

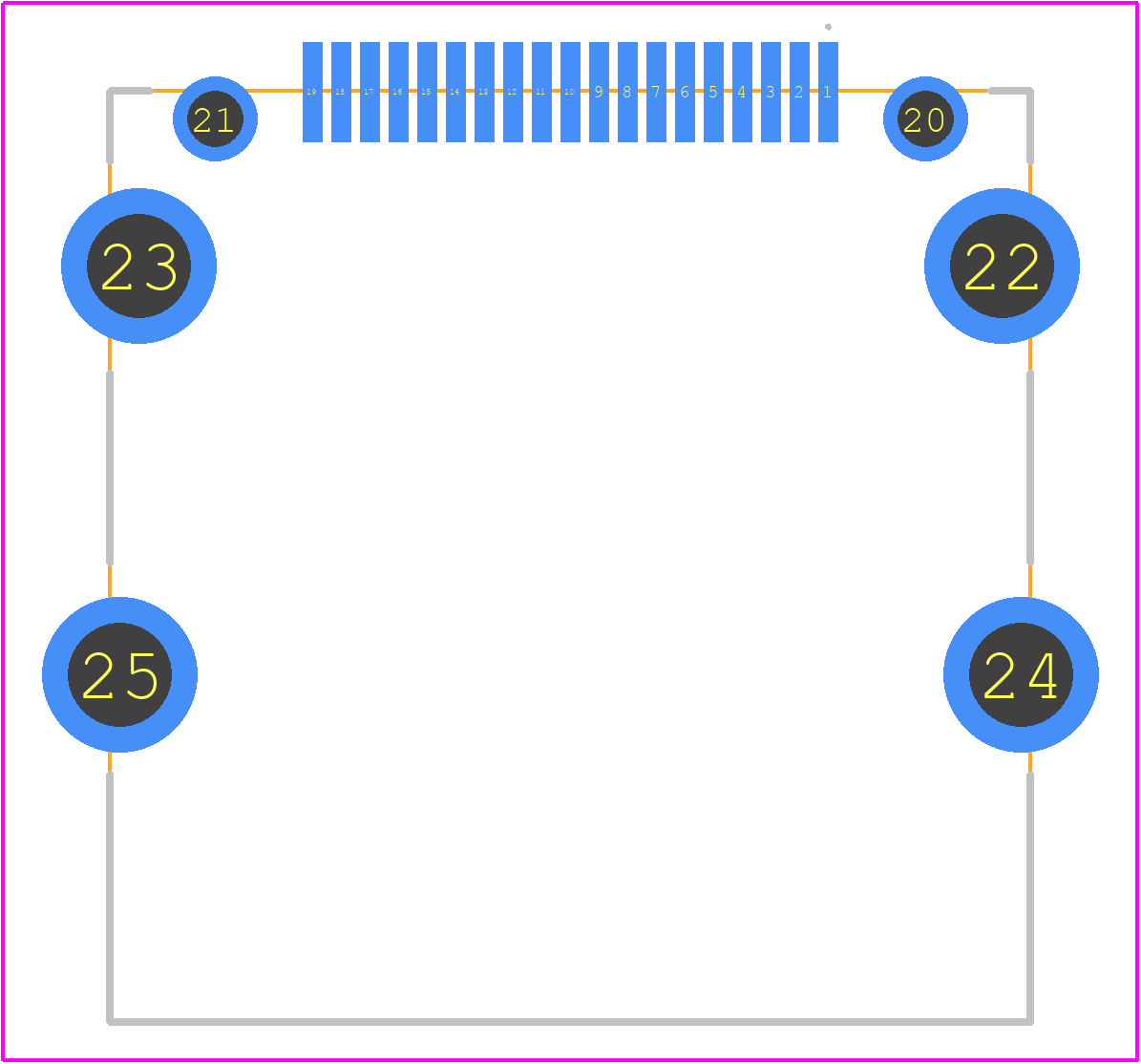

PCB Footprints

HIE-N19R-S02A - J.S.T. PCB footprint - Other - Other - HIE-N19R-S02A-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HIE-N19R-S02A
Part Number HIE-N19R-S02A
Manufacturer J.S.T.
Pin Count 25
Part Category Connector
Package Category Other
Footprint Name Other - HIE-N19R-S02A-2
Released Date Apr 2, 2026
Last Modified Date Apr 2, 2026 12:12 PM UTC
Pinout / Pin List Click Here (Member Only)

HIE-N19R-S02A Details

Manufacturer Part Number:
HIE-N19R-S02A
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
JST Manufacturing
Connector Type:
HDMI CONNECTOR

Trust Checks

Community Provided

System Verified

Community Approved

HIE-N19R-S02A Overview

Use the download button to access the HIE-N19R-S02A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HIE-N, or try a keyword search, such as Telecom and Datacom Connectors
