HIF3B-16PA-2.54DS(71) - Hirose

Description: Headers & Wire Housings 16P PIN HEADER T/H R/A 3-WALL CNG FINSH

Download HIF3B-16PA-2.54DS(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

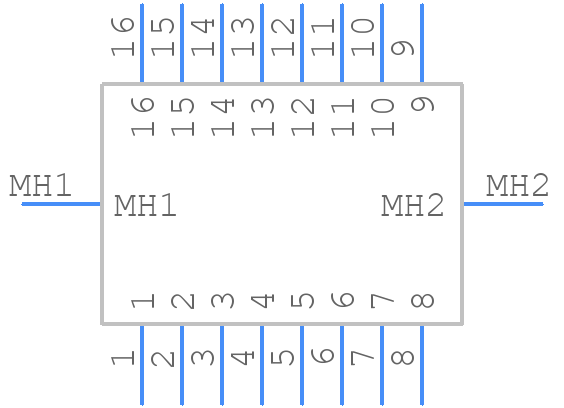

HIF3B-16PA-2.54DS(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

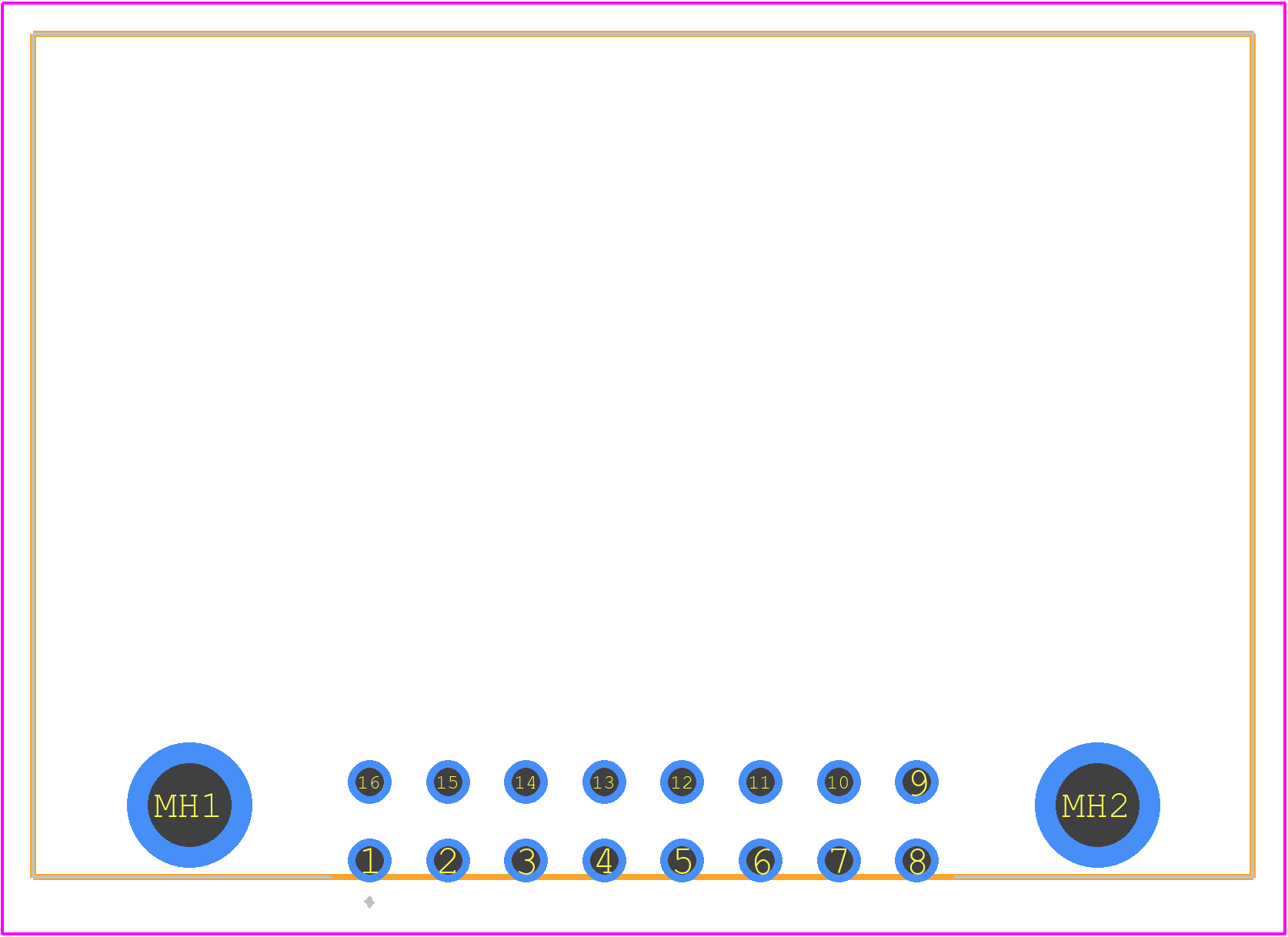

HIF3B-16PA-2.54DS(71) - Hirose PCB footprint - Other - Other - HIF3B-16PA-2.54DS(71)-2
click to zoom
3D Models
HIF3B-16PA-2.54DS(71) - Hirose - 3D model - Other - HIF3B-16PA-2.54DS(71)-2
click to zoom

HIF3B-16PA-2.54DS(71) Details

  • Manufacturer Part Number:

    HIF3B-16PA-2.54DS(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

HIF3B-16PA-2.54DS(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the HIF3B-16PA-2.54DS(71) is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 100G (11ms), making it suitable for use in high-vibration environments.
  • Yes, the HIF3B-16PA-2.54DS(71) has a operating temperature range of -40°C to 105°C and is resistant to moisture, salt, and dust, making it suitable for use in harsh environments.
  • Yes, the HIF3B-16PA-2.54DS(71) is designed to be used with a cable assembly, and Hirose Electric Co Ltd provides guidelines for cable assembly design and manufacturing.
  • The HIF3B-16PA-2.54DS(71) has a mating cycle life of 500 cycles, as specified in the datasheet.
