The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the HIF3B-40PA-2.54DS(71) is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
Yes, the HIF3B-40PA-2.54DS(71) has a operating temperature range of -40°C to 105°C and is resistant to moisture, making it suitable for use in harsh environments.
The mating cycle life of the HIF3B-40PA-2.54DS(71) is 500 cycles, as specified in the Hirose Electric Co Ltd's datasheet.
Yes, the HIF3B-40PA-2.54DS(71) is compatible with AWG24 wire, but it's recommended to check the wire stripping length and insulation diameter to ensure proper connection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIF3B-40PA-2.54DS(71) Overview

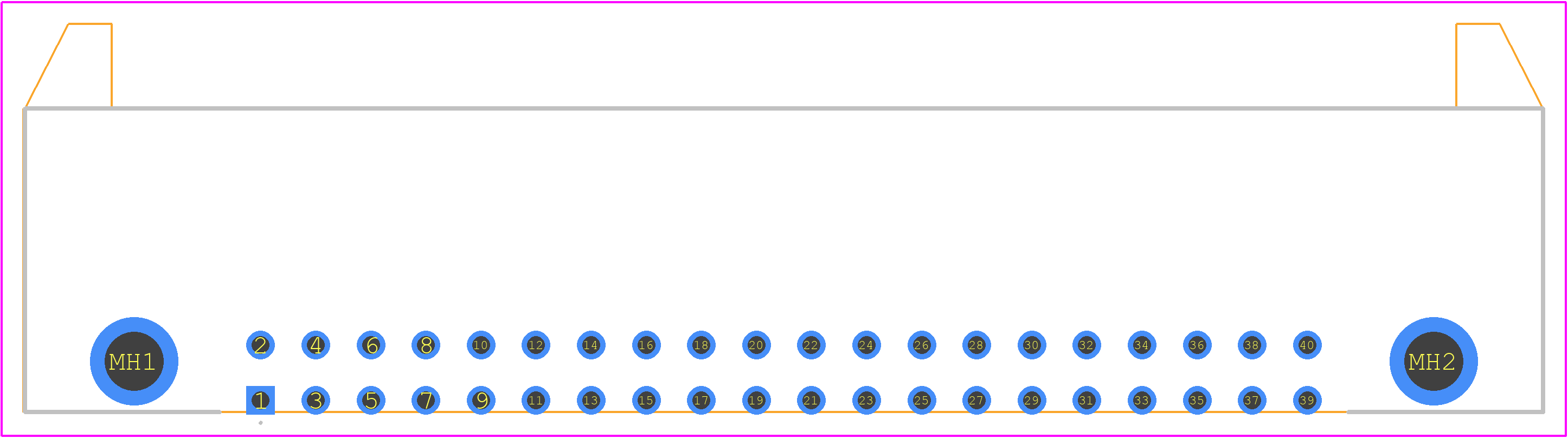

Use the download button to access the HIF3B-40PA-2.54DS(71) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B,
or try a keyword search, such as Headers and Edge Type Connectors
