HIF3BA-10PA-2.54DSA(63) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

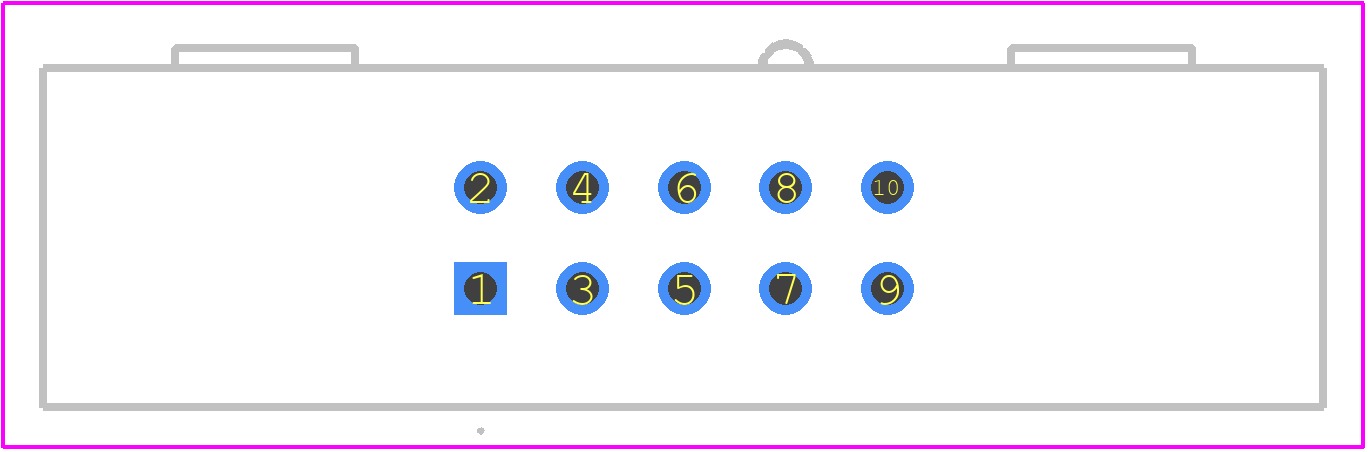

HIF3BA-10PA-2.54DSA(63) - Hirose PCB footprint - Other - Other - HIF3BA-10PA-2.54DSA(63)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HIF3BA-10PA-2.54DSA(63)
Part Number HIF3BA-10PA-2.54DSA(63)
Manufacturer Hirose
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - HIF3BA-10PA-2.54DSA(63)-1
Released Date Jun 22, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HIF3BA-10PA-2.54DSA(63) Details

Manufacturer Part Number:
HIF3BA-10PA-2.54DSA(63)
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Connector Type:
BOARD CONNECTOR

HIF3BA-10PA-2.54DSA(63) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz.
The operating temperature range of the HIF3BA-10PA-2.54DSA(63) connector is -40°C to 105°C (-40°F to 221°F).
Yes, the connector is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
The mating cycle life of the HIF3BA-10PA-2.54DSA(63) connector is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

HIF3BA-10PA-2.54DSA(63) Overview

Use the download button to access the HIF3BA-10PA-2.54DSA(63) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B, or try a keyword search, such as Headers and Edge Type Connectors
