The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. However, it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific torque values.
Yes, the HIF3BA-20PA-2.54DSA(63) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult the datasheet and perform thorough testing to ensure the connector meets the specific requirements of your application.
The operating temperature range for the HIF3BA-20PA-2.54DSA(63) is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating information.
Yes, the HIF3BA-20PA-2.54DSA(63) is compatible with lead-free soldering processes. Hirose Electric Co Ltd uses lead-free materials and manufacturing processes to ensure compliance with environmental regulations.
The mating cycle life of the HIF3BA-20PA-2.54DSA(63) is 500 cycles minimum. However, the actual mating cycle life may vary depending on the application and usage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIF3BA-20PA-2.54DSA(63) Overview

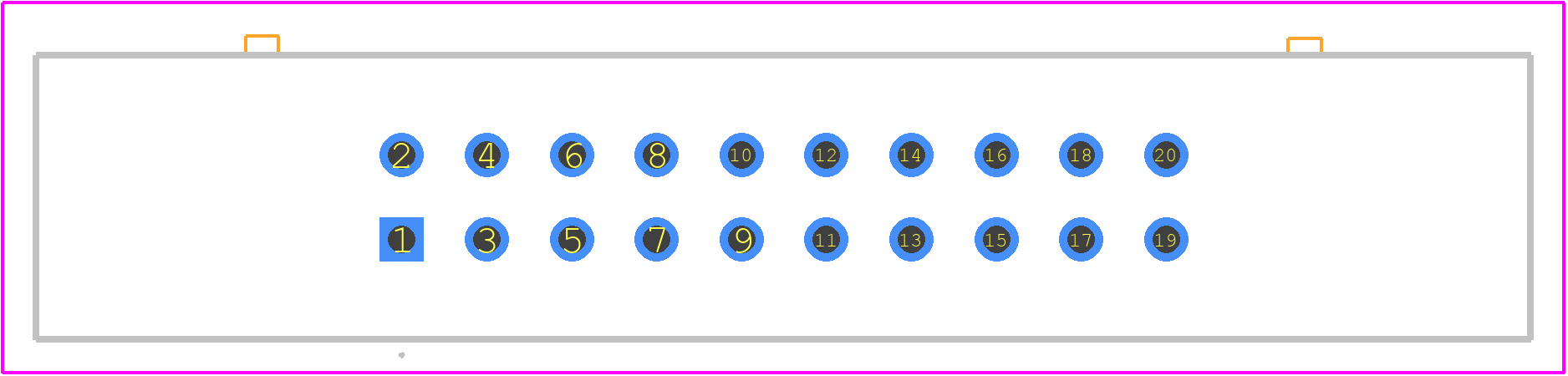

Use the download button to access the HIF3BA-20PA-2.54DSA(63) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B,
or try a keyword search, such as Headers and Edge Type Connectors
