Part Image

HIF3BA-60PA-2.54DSA(63) - Hirose

Description: Connector Header Through Hole 60 position 0.100" (2.54mm) , 200V , -55°C ~ 85°C

Download HIF3BA-60PA-2.54DSA(63) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HIF3BA-60PA-2.54DSA(63) - Hirose - PCB symbol
click to zoom
PCB Footprints

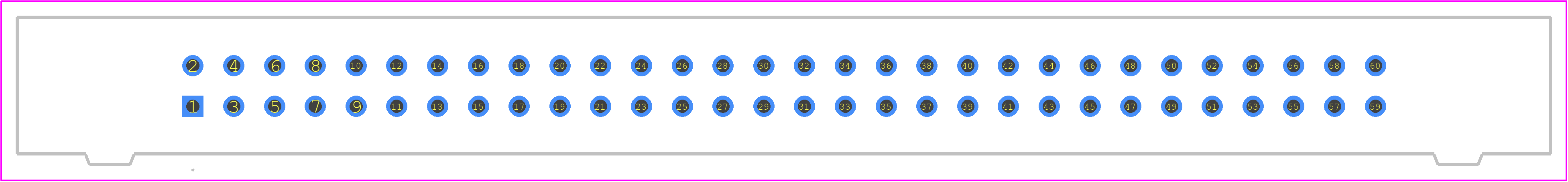

HIF3BA-60PA-2.54DSA(63) - Hirose PCB footprint - Other - Other - HIF3BA-60PA-2.54DSA(63)-2
click to zoom
3D Models
HIF3BA-60PA-2.54DSA(63) - Hirose - 3D model - Other - HIF3BA-60PA-2.54DSA(63)-2
click to zoom

HIF3BA-60PA-2.54DSA(63) Details

  • Manufacturer Part Number:

    HIF3BA-60PA-2.54DSA(63)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

HIF3BA-60PA-2.54DSA(63) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for HIF3BA-60PA-2.54DSA(63) connectors is 500 cycles.
  • Yes, HIF3BA-60PA-2.54DSA(63) connectors are designed to withstand high-vibration environments, making them suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range for HIF3BA-60PA-2.54DSA(63) connectors is -40°C to 105°C.
  • Yes, HIF3BA-60PA-2.54DSA(63) connectors are compatible with lead-free soldering processes, making them suitable for RoHS-compliant applications.
  • The typical insertion force for HIF3BA-60PA-2.54DSA(63) connectors is around 1.5 N (newtons) per contact.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIF3BA-60PA-2.54DSA(63) Overview

Use the download button to access the HIF3BA-60PA-2.54DSA(63) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B, or try a keyword search, such as Headers and Edge Type Connectors
