HIF3BB-50PA-2.54DS(63) footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

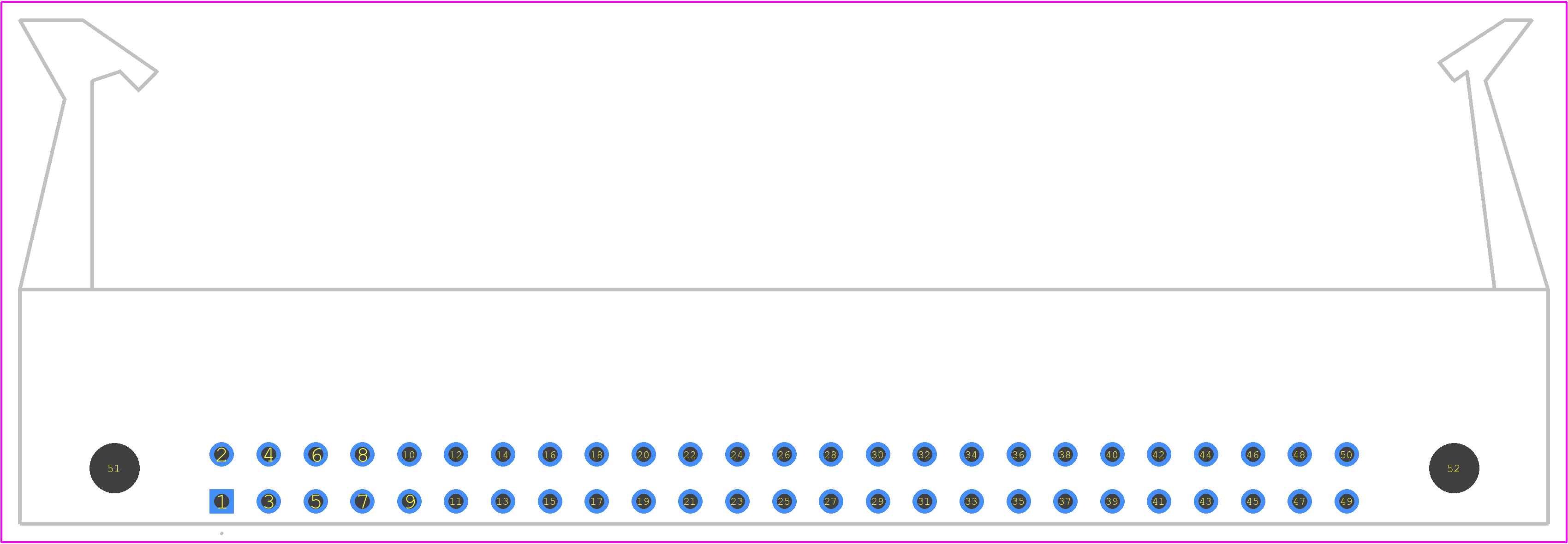

HIF3BB-50PA-2.54DS(63) - Hirose PCB footprint - Other - Other - HIF3BB-50PA-2.54DS(63)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HIF3BB-50PA-2.54DS(63)
Part Number HIF3BB-50PA-2.54DS(63)
Manufacturer Hirose
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - HIF3BB-50PA-2.54DS(63)-2
Released Date Nov 7, 2025
Last Modified Date Nov 10, 2025 1:48 AM UTC
Pinout / Pin List Click Here (Member Only)

HIF3BB-50PA-2.54DS(63) Details

Manufacturer Part Number:
HIF3BB-50PA-2.54DS(63)
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
1
Connector Type:
BOARD CONNECTOR

HIF3BB-50PA-2.54DS(63) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the connector is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, and 3 mm amplitude.
The operating temperature range for the HIF3BB-50PA-2.54DS(63) connector is -40°C to 105°C (-40°F to 221°F).
Yes, the connector is suitable for outdoor use, but it's recommended to use a waterproofing measure, such as a sealant or conformal coating, to ensure reliability in harsh environments.
The mating cycle life of the connector is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

HIF3BB-50PA-2.54DS(63) Overview

Use the download button to access the HIF3BB-50PA-2.54DS(63) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HIF3B, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to HIF3BB-50PA-2.54DS(63)

Showing 0 results
